Description

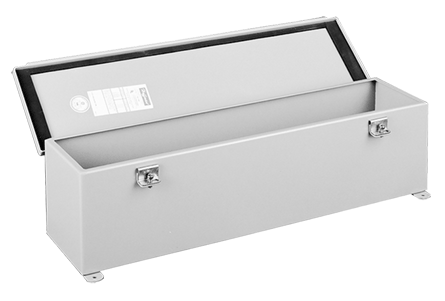

Hinged Cover Wiring Trough NEMA Type 12, 2.50x2.50x24.00, Gray, Steel
- Ends and seams continuously welded and ground smooth
- No holes or knockouts
- Butt hinges
- External screw clamps
- Oil-resistant gasket and adhesive
PRODUCT ATTRIBUTES
- Type: Trough
- Height: 2.5 in / 64 mm
- Width: 2.5 in / 64 mm
- Depth: 24 in / 610 mm
- Protection Rating: NEMA Type 12; IP60
- Material: Mild Steel
- Clamp Quantity: 2
- Mounting Bracket Quantity: 2
- Color: Gray
- Color Code: ANSI 61
- Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 7.14 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Hinged-Cover Wiring Trough, Type 12 is used for protecting wire and cable distribution, junctions and terminations in a variety of applications. This wiring trough meets basic functionality requirements for moist or dirty applications, with the added feature of a hinged, screw clamp cover for easy access.
BULLETIN NUMBER
F20HC
