Product Overview

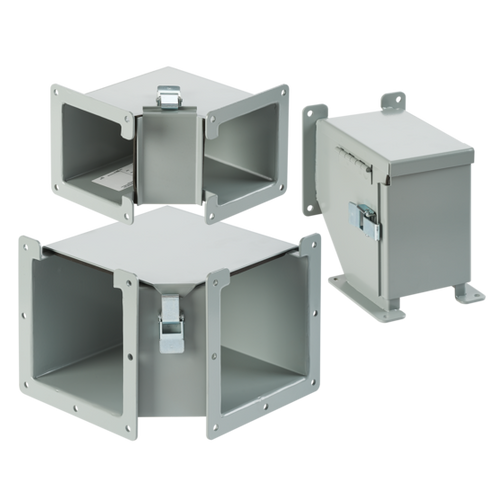

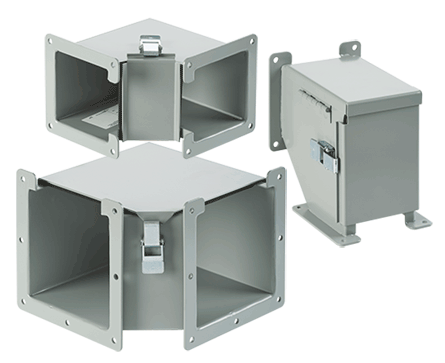

Elbow 90-Degree LayIn Wireway Top Opening, 2.50x2.50, Gray, Mild Steel

Lay-in Hinged-Cover 90-Degree Elbows are used for right-angle wireway installations
Because sections of lay-in wireway can be mounted with covers oriented in any direction, three different 90-degree elbows are available
Proper selection allows the user to maintain the same access and thereby preserve the lay-in feature for right-angle installations

PRODUCT ATTRIBUTES

Type: Elbow
Height: 2.5 in / 64 mm
Width: 2.5 in / 64 mm
Protection Rating: NEMA Type 12; IP54
Material: Mild Steel
Sealing Plate Type: Flat
Sealing Plate Quantity: 1
Color: Gray
Color Code: ANSI 61
Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
Thickness: 14 ga / 1.9 mm
Weight: 3.3 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Lay-in Hinged-Cover 90-Degree Elbows are used for right-angle wireway installations. Because sections of lay-in wireway can be mounted with covers oriented in any direction, three different 90-degree elbows are available. Proper selection allows the user to maintain the same access and thereby preserve the lay-in feature for right-angle installations.

BULLETIN NUMBER

F10

INDUSTRY STANDARDS

Certified by Canadian Standards Association

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
