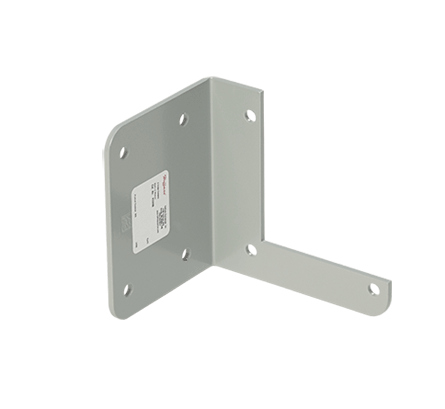

Hoffman F22HB Bracket Hanger

Hoffman F22HB Bracket Hanger

$22.10
SKU:
F22HB
Shipping:
Calculated at Checkout
Product Type:
Hangers
Material:
Steel
Nema Product Type:
Nema Type 12
Height:
2.5
Width:
2.5
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

Bracket Hanger, fits 2.50x2.50, Gray, Steel

  • Hangers are used to support a wireway run
  • The drop hanger is normally attached to an overhead beam or ceiling while the bracket hanger can be used for wall, floor or ceiling installations
  • Hangers are finished with paint over plated surfaces

PRODUCT ATTRIBUTES

  • Type: Hanger
  • Height: 2.5 in / 64 mm
  • Width: 2.5 in / 64 mm
  • Protection Rating: NEMA Type 12; IP54
  • Material: Mild Steel
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
  • Thickness: 14 ga / 1.9 mm
  • Weight: 0.86 lb

ADDITIONAL PRODUCT DETAILS

Hangers are used to support a wireway run. The drop hanger is normally attached to an overhead beam or ceiling while the bracket hanger can be used for wall, floor or ceiling installations. Hangers are finished with paint over plated surfaces.

BULLETIN NUMBER

F20
