Description

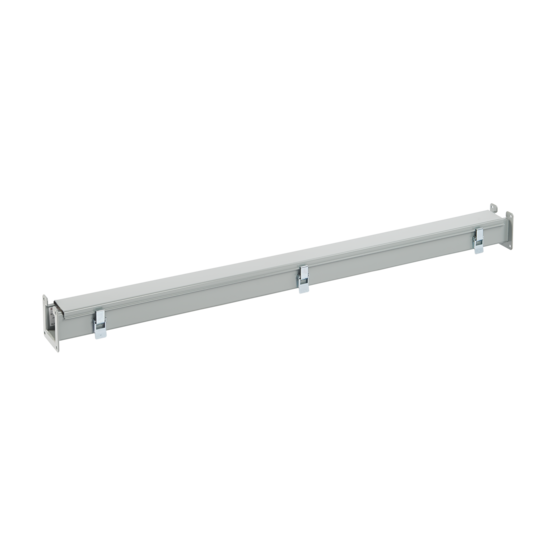

Straight Section Lay-in Hinged-Cover Type 12, 12.00x6.00x48.00, Gray, Steel
- Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants
- This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling
PRODUCT ATTRIBUTES
- Type: Straight Section
- Height: 12 in / 305 mm
- Width: 6 in / 152 mm
- Depth: 48 in / 1219 mm
- Protection Rating: NEMA Type 12; IP54
- Material: Mild Steel
- Sealing Plate Type: Flat
- Sealing Plate Quantity: 1
- Color: Gray
- Color Code: ANSI 61
- Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 43.62 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Lay-in NEMA Type 12 Wireway fittings are used primarily in industrial applications to protect wiring against exposure to oil and other contaminants. This gasketed wireway features quick-release latches for easy access and an opening on one side so wires and cables can be laid in along the entire run without pulling.
Each sealing plate also includes one gasket and one set of screws to join sections.
Certified by Canadian Standards Association.
BULLETIN NUMBER
F10
