Product Overview

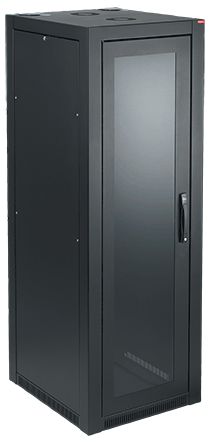

Seismic Cabinet, 2134x700x1000mm, Black, Steel

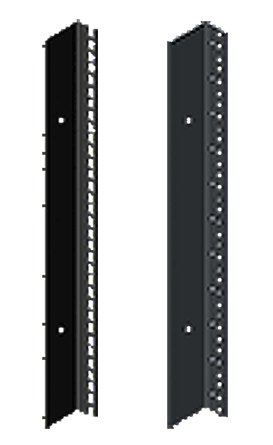

- ENC2189S can be configured for 19- or 23-inch rack mounting by reversing the rack angles
- Both front and rear doors are hinged left and equipped with key-lock flush handle and 3-point latching
- Same key provides access to all doors and side panels
- Doors and side panels are removable for easier equipment installation and upgrades
- Doors and side panels inset flush with frame
- Vented, heavy gauge steel base is designed to bolt to floor with seismic-rated fasteners
- Heavy gauge welded steel frame provides structural integrity in the presence of seismic activity
PRODUCT ATTRIBUTES
- Height: 84 in / 2134 mm
- Width: 27.57 in / 700 mm
- Depth: 39.37 in / 1000 mm
- Material: Mild Steel
- Rack Units: 45
- Rack Angle Hole Type: Square
- Color: Jet Black
- Color Code: RAL 9005
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 467 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Seismic Cabinets protect LAN and WAN network equipment, servers and phone/voice mail equipment during Zone 4 seismic activity, and are also ideal for use in high vibration areas or areas with high load capacities. The cabinet's passive cooling design can be augmented with optional fans.
BULLETIN NUMBER
DNCS
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
