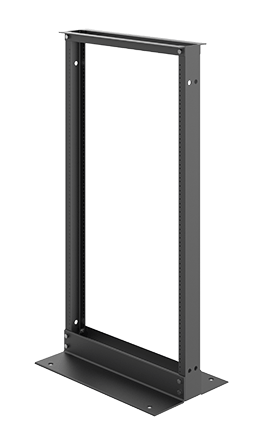

Hoffman EDR23FM24U 2-Post 24U Open-Frame Rack

APPLICATION:

Designed for use in network, server, and telecommunication rooms, 2-Post Open Frame Racks satisfy basic functional requirements for structuring cable. Racks are available in 3-in. or 6-in. column widths.

FEATURES:

• Range of heights from 4 ft. to 9 ft. (24U to 58U) to match capacity requirements; 19-in. Rack Packages are 7-ft. high
• Side rails are tapped on both sides with 12-24UNC threads for quick installation
• EIA Universal 5/8 in. - 5/8 in. - 1/2 in. vertical mounting hole pattern matches industry standards
• RU markings on both front and back of uprights make it easier to mount equipment
• Packed unassembled in individual cartons; assembly hardware (including twenty 12-24 mounting screws) is furnished for convenient storage and installation
• Convenient rack and cable manager packages offered with either one or two 6-in. cable managers; includes one-piece hinged cover

SPECIFICATIONS:

• Frame is a strong and lightweight aluminum (6063-T6 alloy), extruded or formed, with RU markings on both front and back of uprights

FINISH:

• RAL 9005 black polyester powder paint or milled aluminum or RAL 9003 white polyester power paint finish

LOAD RATING:

• Do not exceed the following recommended load ratings.
• Floor Mount Rack - 1000 lb. (453.6 kg)
• One-Sided Solid Shelf - 150 lb. (68.0 kg)
• Double-Sided Shelf - 300 lb. (136.1 kg)
• One-Sided Vented Shelf - 150 lb. (68.0 kg)
• Double-Sided Vented Shelf - 300 lb. (136.1 kg)
• Adjustable Vented Shelf - 60 lb. (27.2 kg)
• Keyboard/Monitor Shelf - 200 lb. (90.7 kg)
