Product Overview

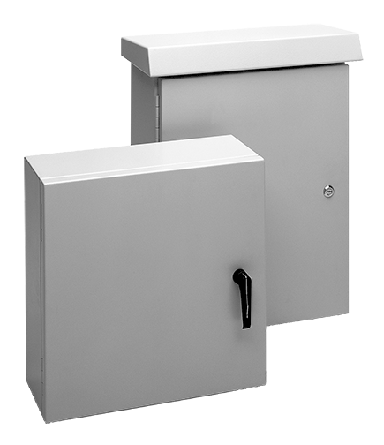

ComLine OSP Package Type 4X, 1281x600x500mm, Lt Gray, Aluminum

Solar shield helps keep enclosure interior cool when cabinet is installed outdoors and directs liquids away from cabinet opening; can be removed for indoor installations
Foam-in-place gasket provides environmental seal
Padlocking L-Handle provides a tight, secure door seal
Doorstop holds door in place during service for easier and faster maintenance
Heavy-duty hinged door is easily removed to facilitate equipment installation and removal; maximum door load 50 lb. (22.7 kg)
Rack angles adjustable front-to-rear of cabinet
Gland plates available with cutouts that fit HOFFMAN T15, T20 and CR23 air conditioners and HOFFMAN XR20 and XR29 heat exchangers (Indoor use only)
Radius corners on cabinet eliminate sharp edges
Stainless steel fasteners resist corrosion to maintain professional appearance
Pole mounting kits available for all sizes
Pad mounting plinth available for 600mm deep cabinets
Battery compartment has front vented captivated door
Rack angles have EIA universal standard square hole spacing
Body includes studs for ground bar and rear mounting studs for wood panel

PRODUCT ATTRIBUTES

Height: 50.43 in / 1281 mm
Width: 23.62 in / 600 mm
Depth: 19.69 in / 500 mm
Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 3; NEMA Type 3R; IP66
Material: Aluminum
Rack Units: 18
Body Thickness: 0.125 in / 3 mm
Color: Light Gray
Color Code: RAL 7035
Door Thickness: 0.1 in / 2.5 mm
Finish: Powder Coated
Weight: 117 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

A complete, off-the-shelf package for 19-inch rack equipment, lightweight ComLine OSP Wall-Mount Cabinets are constructed of corrosion-resistant aluminum with a foam-in-place gasket that secures and protects sensitive equipment in outdoor applications. Available with or without back-up battery compartment.

Note – SR20 and SR2 are for indoor use only

BULLETIN NUMBER

DCOM

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
