Product Overview

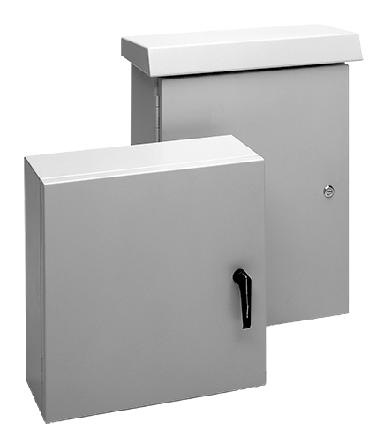

ComLine VM Cabinet, 600x350x375mm, Lt Gray, Aluminum

Vertically oriented 19-inch equipment mounting creates a compact, wind-resistant cabinet
Integral solar shield reduces solar heat load

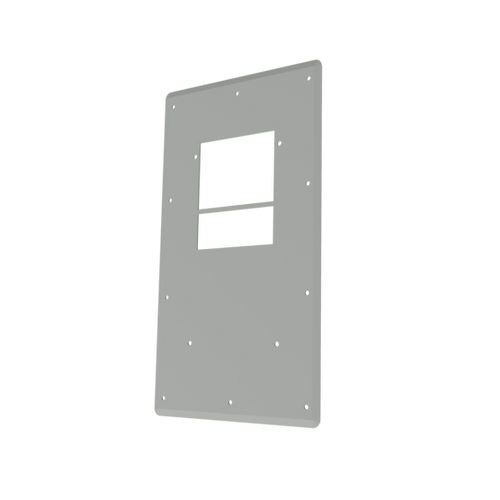

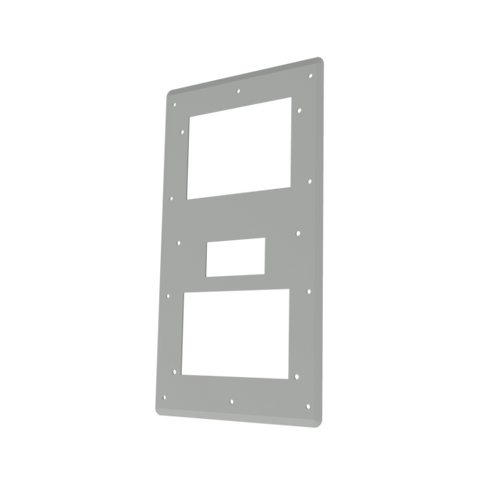

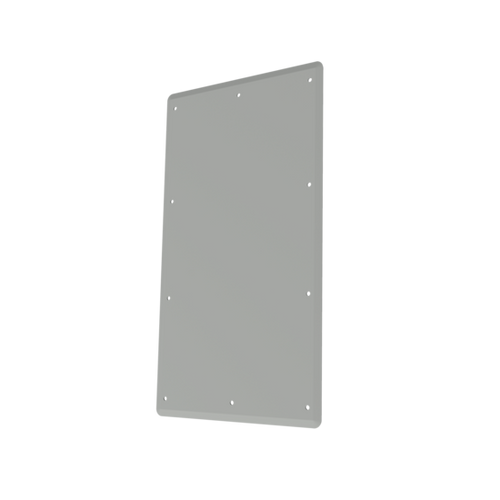

Right-side, solid gland plate can be removed and modified as needed
6 RU Rack has square hole spacing per EIA universal standards; order cage nuts separately
Quarter-turn, multi-point, vault-style latching system increases protection and security
160-degree door opening with quick-release, retained hinge pins
Body and door ground studs for bonding and grounding
Foam-in-place seamless gasket for superior protection against dust and liquid ingress
Back is prepared with mounting provisions for standard panels
Mounts to poles or walls

PRODUCT ATTRIBUTES

Height: 23.62 in / 600 mm
Width: 13.78 in / 350 mm
Depth: 14.76 in / 375 mm
Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 3; NEMA Type 3R; IP66
Material: Aluminum
Rack Units Vertical: 5
Color: Light Gray
Color Code: RAL 7035
Finish: Powder Coated
Thickness: 0.1 in / 2.5 mm
Weight: 29.85 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

ComLine Vertical-Mount Cabinet is ideal for telecommunications industry applications. The unique vertical orientation of the 19-inch rack equipment makes this cabinet especially suitable for pole-mount applications. The narrow cabinet width also makes it very wind resistant.

BULLETIN NUMBER

DCOM
