Product Overview

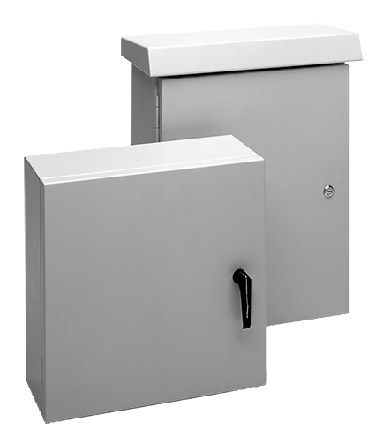

ComLine Enclosure Continuous Hinge Type 4X, 500x400x200mm, Gray, Aluminum
- Bonding provision on door; ground stud on body
- Seams continuously welded and ground smooth for a finished appearance
- Foam-in-place seamless gasket for superior protection against dust and liquid ingress
- 1- or 3-point latching (screwdriver slot), depending on door size
- Optional door stop/wind latch holds door in place during service
- Two door/hinge styles available
- Easily removable door with hidden hinge and retaineing hinge pin
PRODUCT ATTRIBUTES
- Height: 19.69 in / 500 mm
- Width: 15.75 in / 400 mm
- Depth: 7.87 in / 200 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 3; NEMA Type 3R; IP66
- Material: Aluminum
- Door Thickness: 2 mm / 0.08 in
- Latch Points: 1
- Package Weight: 15 lb
- Body Thickness: 0.08 in / 2 mm
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Weight: 15 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Lightweight, corrosion-resistant ComLine aluminum wall-mount enclosures provide long-lasting protection for housing electrical components in extreme outdoor environments. These customizable enclosures employ a foam-in-place gasket for a tight seal and are ideal for rooftop or tower-mounted telecommunications applications.
BULLETIN NUMBER
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
