Product Overview
APPLICATION:

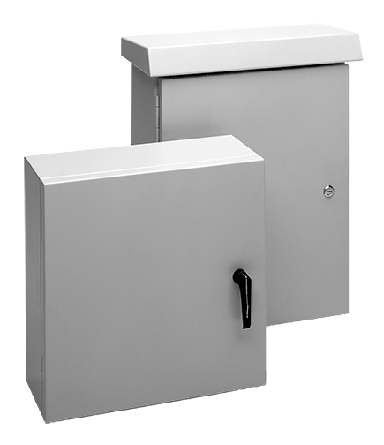

Lightweight, corrosion-resistant Comline aluminum wall-mount enclosures provide long-lasting protection for housing electrical components in extreme outdoor environments. These customizable enclosures employ a foam-in-place gasket for a tight seal and are ideal for rooftop or tower-mounted telecommunications applications.
FEATURES:
- Foam-in-place gasket
- 1- or 3-point latching (screwdriver slot), depending on door size
- Optional door stop/wind latch holds door in place during service
- Two door/hinge styles available: 1) Easily removable door with hidden hinge and retained hinge pin. Maximum door load 50 lb. (22.7 kg) 2) Heavy-duty continuous hinge door. Maximum door load 150 lb. (68.0 kg)
- Optional solar shield top
SPECIFICATIONS:
- Category 5052-H32 aluminum: covers are .080-in. or .100-in. thick depending on size; bodies are .080-in. thick
- Seams continuously welded and ground smooth for a finished appearance
- Bonding provision on door; ground stud on body
FINISH:
- RAL 7035 light textured low gloss polyester powder paint over pretreated surfaces. Custom finishes available; please contact your local Hoffman sales office.
ACCESSORIES:
- Door Stop Kit
- Handle Options
- Mounting Panel
- Pole Mounting Kit
- Rack Angles
- Solar Shield Top
