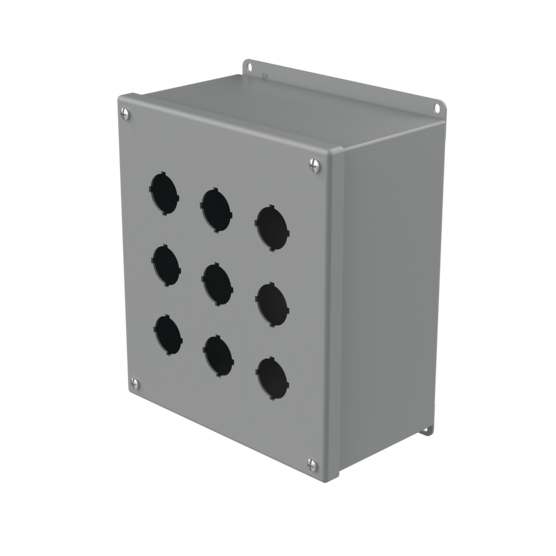

Hoffman E9PBX Type 12 Extra-Deep Pushbutton Enclosure

$252.00
SKU:
E9PBX
Shipping:
Calculated at Checkout
Product Type:
Pushbutton Enclosures
Material:
Steel
Nema Rating:
Type 12
Height:
9.5
Width:
8.25
Depth:
4.75
Hoffman E9PBX Type 12 Extra-Deep Pushbutton Enclosure

Product Overview

Extra-Deep Pushbutton Enclosure Type 12, 9PBx30.5mm, Gray, Steel

  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Grounding stud on body
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

PRODUCT ATTRIBUTES

  • Height: 9.5 in / 241 mm
  • Width: 8.25 in / 210 mm
  • Depth: 4.75 in / 121 mm
  • Protection Rating: NEMA Type 12; NEMA Type 13; IP65
  • Material: Mild Steel
  • Hole Size: 30.5 mm
  • Hole Quantity: 9
  • Mounting: 10.00 x 7.62 in / 254 x 194 mm
  • Overall Dimensions: 10.50 x 8.72 in / 267 x 221 mm
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness: 14 ga / 1.9 mm
  • Weight: 7.6 lb

DRAWINGS AND DOCUMENT DOWNLOADS

3D Step

E9PBX 3D STEP CAD

ADDITIONAL PRODUCT DETAILS

Extra-Deep Pushbutton Enclosures are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with a depth of 4.75 inches (121 mm) to accommodate additional pushbutton contact blocks.

BULLETIN NUMBER

PB1



Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
