Product Overview
APPLICATION:

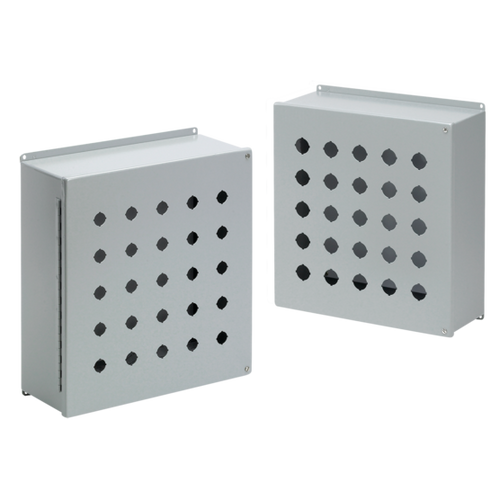

Extra-Large Pushbutton Enclosures with panels are designed to hold 30.5-mm and 22.5-mm pushbuttons and switches, with factory-stamped holes ranging from 4 to 42 total number of holes.
SPECIFICATIONS:
- 14 gauge steel
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Continuous hinge
- Factory stamped 4-way pushbutton holes
- Oil-resistant gasket
- Removable 14 gauge panel included, supported by weldnuts
- Bonding provision on cover
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
FINISH:
- ANSI 61 gray polyester powder paint inside and out. Included panels have white finish.
ACCESSORIES:
- HOL-SEALERS Hole Seals
- Tamper-Resistant Screws
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
