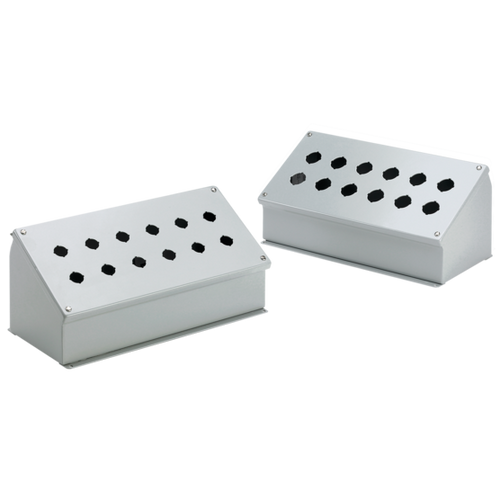

Hoffman E6PBA Type 12 Sloped-Front Pushbutton Enclosure

$266.00
SKU:
E6PBA
Shipping:
Calculated at Checkout
Product Type:
Pushbutton Enclosures
Material:
Steel
Nema Rating:
Type 12
Height:
7.25
Width:
8.5
Depth:
6.75
Hoffman E6PBA Type 12 Sloped-Front Pushbutton Enclosure

Product Overview

Sloped-Front Pushbutton Enclosures Type 12, 6PBx30.5mm, Gray, Steel

  • Seams continuously welded and ground smooth
  • Captivated cover screws thread into sealed wells
  • Grounding stud on body
  • Bonding provision on cover
  • Oil-resistant gasket
  • Factory stamped 4-way pushbutton holes
  • Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
  • External welded-on mounting brackets for easy installation
  • 30.5-mm or 22.5-mm size holes

PRODUCT ATTRIBUTES

  • Height: 7.25 in / 184 mm
  • Width: 8.5 in / 216 mm
  • Depth: 6.75 in / 171 mm
  • Protection Rating: NEMA Type 12; NEMA Type 13; IP65
  • Material: Mild Steel
  • Hole Size: 30.5 mm
  • Hole Quantity: 6
  • Mounting: 7.28 x 7.62 in / 185 x 194 mm
  • Overall Dimensions: 7.78 x 8.72 in / 198 x 221 mm
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness: 14 ga / 1.9 mm
  • Weight: 6.9 lb

ADDITIONAL PRODUCT DETAILS

These Sloped Front Pushbutton Enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches where slanted control surfaces are desired.

BULLETIN NUMBER

PB1

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
