Product Overview

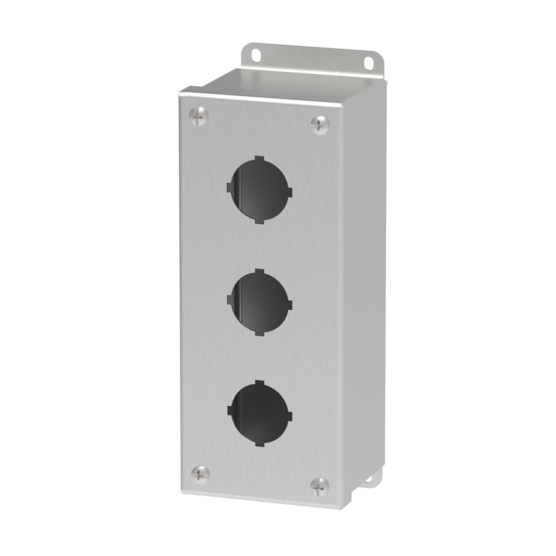

Pushbutton Screw Cover Type 4X, 3PBx30.5mm, SS304

Prepunched 30.5mm or 22.5mm holes
Seams continuously welded and ground smooth
Captivated cover screws thread into sealed wells
Bonding provision on door; grounding nut on body
4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
Oil-resistant gasket

PRODUCT ATTRIBUTES

Height: 8 in / 203 mm
Width: 3.25 in / 83 mm
Depth: 2.75 in / 70 mm
Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4X; IP66
Material: Stainless Steel 304
Finish: Brushed #4
Color: Unpainted
Thickness: 14 ga / 1.98 mm
Hole Size: 30.5 mm
Hole Quantity: 3
Overall Dimensions: 9.00 x 3.47 in / 229 x 88 mm
Mounting: 8.50 x 2.38 in / 216 x 60 mm
Stainless Steel Type: Type 304
Weight: 2.6 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Punched specifically to house either 30.5-mm or 22.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dirt, dust, oil and water. See Mild Steel chapter for related mild steel enclosures.

BULLETIN NUMBER

PB1S
