Product Overview

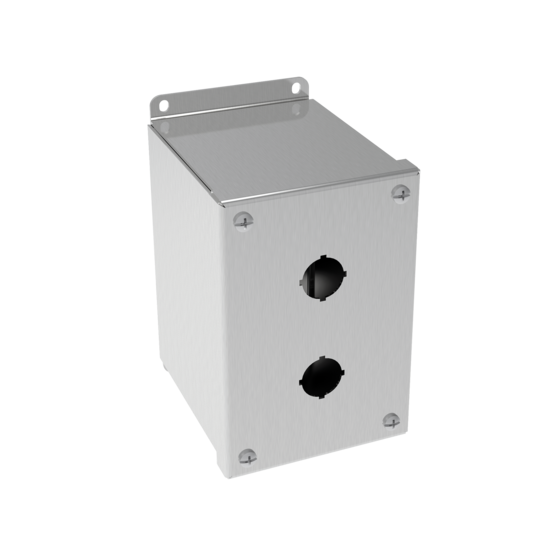

Extra-Deep Pushbutton Screw Cover Type 4X, 2PBx22.5mm, SS304

Extra-deep design accommodates additional contact blocks for pushbuttons.
Seams continuously welded and ground smooth
Captivated stainless steel cover screws thread into sealed wells
Enclosures 8.50 x 4.00 x 4.75 in. (216 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
Bonding provision on door; grounding nut on body
Oil-resistant gasket

PRODUCT ATTRIBUTES

Height: 6 in / 152 mm
Width: 4 in / 102 mm
Depth: 4.75 in / 121 mm
Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4X; IP66
Material: Stainless Steel 304
Overall Dimensions: 7.00 x 4.22 in / 178 x 107 mm
Mounting: 6.50 x 3.13 in / 165 x 80 mm
Hole Quantity: 2
Body Thickness: 14 ga / 1.98 mm
Color: Unpainted
Door Thickness: 16 ga / 1.59 mm
Finish: Brushed #4
Weight: 3.3 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Designed to house 22.5-mm oil-tight pushbuttons, switches and pilot lights. Enclosures provide protection against dust, dirt, oil and water. Extra-deep design accommodates additional contact blocks for pushbuttons.

BULLETIN NUMBER

PB1S
