Product Overview

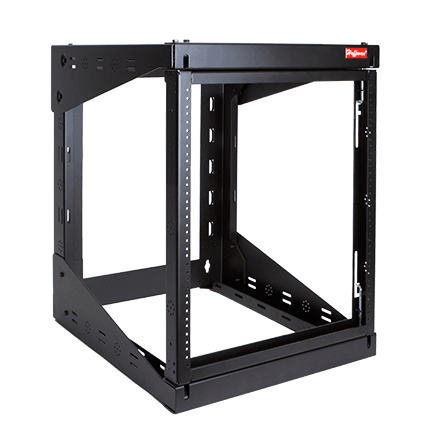

PivotRack, 44.00x7.00x24.10, Black, Steel

Designed to accommodate all standard 19-inch rack equipment
Easy, single-tool assembly reduces installation time and cost
Central pivot in two-position mounting provides maximum versatility
UL double lug ground holes provide easy adherence to local bonding and grounding codes
Lanyard pin locks rack in increments of 15°, providing a stable position for cable and equipment installs
Preassembled for fast, time-saving installation
Temporary mounting bracket allows for rapid, single-person wall installation
Smart packaging with hand carrying holes allows for easy transportation
Cable tie down points, sized for up to 1-inch Velcro® straps, provided in horizontal and vertical positions in multiple locations
Standard 24-inch deep offering to accommodate various applications
Open design provides for maximum access to cables and equipment
19-inch rack fasteners (Phillips head, pilot point, black) 12-24, quantity 20, included
Wall section made of heavy gauge, formed, cold rolled steel construction
Welded pivoting rack section made of formed, cold rolled steel
Tapped 12-24 holes per EIA Universal pattern standards (1/4-5/8- 5/8-1/4)

PRODUCT ATTRIBUTES

Material: Mild Steel
Rack Units: 20
Color: Jet Black
Color Code: RAL 9005
Finish: Powder Coated
Thickness: 12 ga / 2.66 mm
Weight: 44 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

PivotRack is used for wall mounting and securing 19-inch rack equipment for Telecommunication rooms and other locations. It provides an economical means to support remote 19-inch rack equipment. These open frame racks are ideal for high-density cabling applications while providing maximum access to equipment and cables. PivotRack is ideal for IDFs (Intermediate Distribution Frames), remote 19-inch rack equipment, building automation, security and many other applications.

BULLETIN NUMBER

DOFRW
