Product Overview

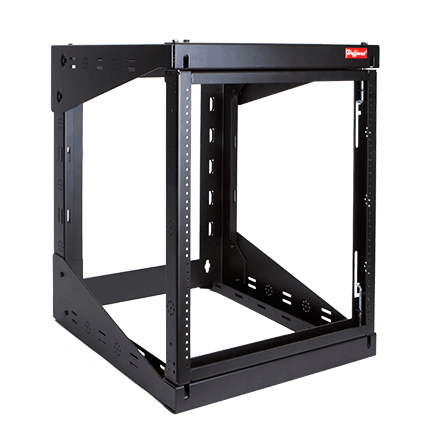

VersaRack Wall-Mount Open Frame Rack, 41.81x20.91x12.28, Black, Steel

Designed to accommodate all standard 19-inch rack equipment
Easy, single-tool assembly reduces installation time and cost
Spring-load pivot pins provide for either left or right hinging; pins can be arranged in unlocked or locked position
Preassembled for fast, time-saving installation
Temporary mounting bracket allows for rapid, single-person wall installation
UL double lug ground holes provide easy adherence to local bonding and grounding codes
Cable tie down points, sized for up to 1-inch Velcro® straps, provided in horizontal and vertical positions in multiple locations
Standard 12- or 24-inch deep offering to accommodate various applications
Open design provides for maximum access to cables and equipment
Smart packaging with hand-carrying holes allows for easy transportation

PRODUCT ATTRIBUTES

Height: 41.81 in / 1062 mm
Width: 20.91 in / 531 mm
Depth: 12.28 in / 312 mm
Material: Mild Steel
Rack Units: 20
Vertical Cable Manager Accessory: E19C20U
Color: Jet Black
Color Code: RAL 9005
Finish: Powder Coated
Thickness: 12 ga / 2.66 mm
Weight: 61 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

VersaRack Wall-Mount Open Frame Rack is used for wall mounting and securing 19-inch rack equipment for Telecommunication Rooms and other locations. The rack provides for either left or right hinging to accommodate a variety of applications. These open frame racks are ideal for high-density cabling application. VersaRack is ideal for IDFs (Intermediate Distribution Frames), remote 19-inch rack equipment, building automation, security and many other applications.

BULLETIN NUMBER

DOFRW

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
