Description

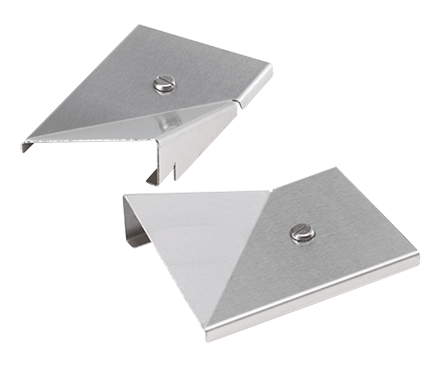

Transition Cover Sloped to Flat Right Hand CleanTray, 3.00x3.00, Brushed, SS304
- Clean Tray transition covers are used for Transitioning from a sloped to standard cable tray
- Available with right- and left-hand slope
- Will fit the Splice (order separately) or anywhere on a straight section (transition cover sloped to flat left-hand shown in drawing)
- The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown
PRODUCT ATTRIBUTES
- Type: Cover
- Height: 3 in / 76 mm
- Width: 3 in / 76 mm
- Material: Stainless Steel 304
- Fits Cable Tray Size: 3 x 3 in
- Color: Unpainted
- Finish: Brushed #3
- Thickness: 18 ga / 1.27 mm
- Weight: 0.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Clean Tray transition covers are used for Transitioning from a sloped to standard cable tray. Available with right- and left-hand slope. Will fit the Splice (order separately) or anywhere on a straight section (transition cover sloped to flat left-hand shown in drawing). The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown.
BULLETIN NUMBER
F23
