Description

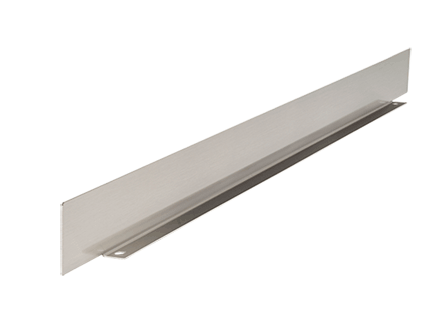

Divider Telescopic Straight Section CleanTray, 6.00x6.00, Brushed, SS304
- Clean Tray telescopic straight section dividers are used for dividing a telescopic section into two sections
- Must be trimmed to length. The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown
PRODUCT ATTRIBUTES
- Type: Divider
- Height: 6 in / 152 mm
- Width: 6 in / 152 mm
- Protection Rating: NEMA Type 1
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Brushed #3
- Thickness: 18 ga / 1.27 mm
- Weight: 3.1 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Clean Tray telescopic straight section dividers are used for dividing a telescopic section into two sections. Must be trimmed to length. The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown.
