Product Overview

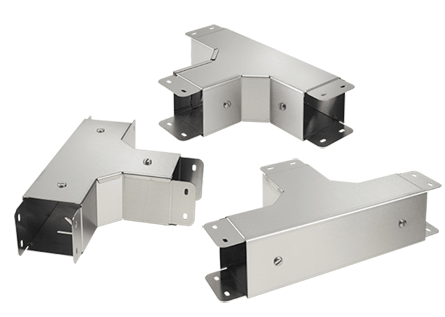

90-Degree Tee CleanTray Outside Cover, 4.00x6.00, Brushed, SS304

Clean Tray 90-Degree Tees are used for right-angle installations where two 90-degree transitions are required
The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown

PRODUCT ATTRIBUTES

Type: Tee
Height: 4 in / 102 mm
Width: 6 in / 152 mm
Protection Rating: NEMA Type 1
Material: Stainless Steel 304
Color: Unpainted
Finish: Brushed #3
Thickness: 18 ga / 1.27 mm
Weight: 7.4 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

Clean Tray 90-Degree Tees are used for right-angle installations where two 90-degree transitions are required. The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown.

BULLETIN NUMBER

F23

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
