Description

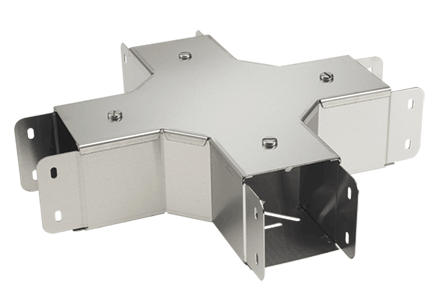

Cross CleanTray Perforated, 4.00x4.00, Brushed, SS304
- Clean Tray Crosses are used for routing Clean Tray cables in four directions
- The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown
PRODUCT ATTRIBUTES
- Type: Cross Fitting
- Height: 4 in / 102 mm
- Width: 4 in / 102 mm
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Brushed #3
- Thickness: 18 ga / 1.27 mm
- Weight: 8 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Clean Tray Crosses are used for routing Clean Tray cables in four directions. The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown.
BULLETIN NUMBER
F23
