PRODUCT ATTRIBUTES

  • Type: Elbow
  • Height: 4 in / 102 mm
  • Width: 4 in / 102 mm
  • Protection Rating: NEMA Type 1
  • Material: Stainless Steel 304
  • Color: Unpainted
  • Finish: Brushed #3
  • Thickness: 18 ga / 1.27 mm
  • Weight: 5 lb

DRAWINGS AND DOCUMENT DOWNLOADS

Approval Agency Certificate

Installation Manual / Instruction Sheet

ADDITIONAL PRODUCT DETAILS

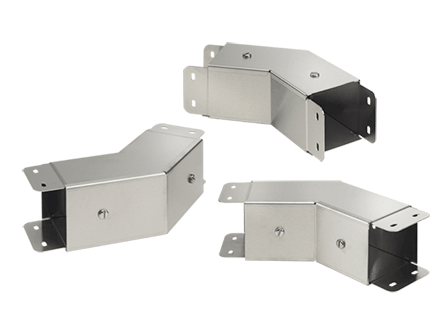

Clean Tray 45-Degree Elbows are used for continuous runs with 45-degree turns. The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown.

BULLETIN NUMBER

F23
