Description

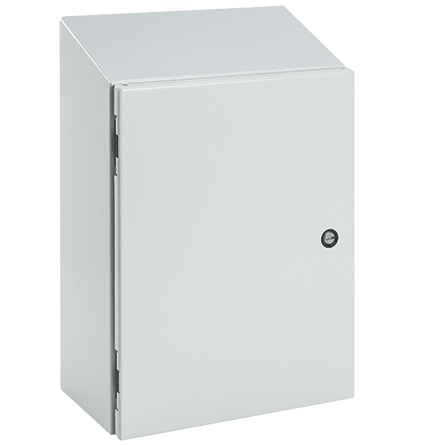

Concept Sloped-Top Enclosure Type 4, 36.00x30.00x12.00, Light Gray, Mild Steel
- Bonding provision on door and body
- Panel-mounting studs fit optional Concept panels and other accessories
- Corner-formed door
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Illustrated instruction sheet
- External formed body flange channels away liquids
- Door opens 210 degrees
- Seamless foam-in-place gasket
- Quarter-turn latches
- Mounting holes in back of body for optional external mounting brackets
- Larger sizes support 19-in. rack mounting
- Door alignment device on doors wider than 30-in.
- Minimum-width body flange provides maximum door opening
- 20-degree sloped top
PRODUCT ATTRIBUTES
- Height: 36 in / 914 mm
- Finish: Powder Coated
- Width: 30 in / 762 mm
- Color: Light Gray
- Depth: 12 in / 305 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; IP66
- Material: Mild Steel
- Panel: CP3630
- Conductive Panel: CP3630G
- Panel Size: 34.2 in / 869 mm / 28.2 in / 716 mm
- Mounting: 38.86 x 28.50 in / 987 x 724 mm
- Latch Quantity: 2
- Latch Style: Quarter-turn
- Body Thickness: 14 ga / 1.9 mm
- Color Code: RAL 7035
- Door Thickness: 14 ga / 1.9 mm
- Weight: 95 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Concept Sloped Top Enclosures support Lean factory principles and are ideal when the miniaturization of controls calls for smaller control cabinets or for applications requiring the mounting of controls at an ergonomic height when attached to equipment.
Purchase panels separately.
BULLETIN NUMBER
CW2
