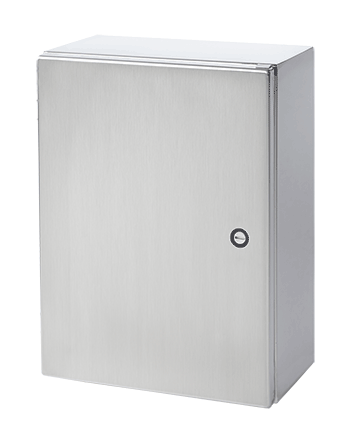

Concept Wallmount 1/4-Turn Latch Type 4X, 20x24x8, Brushed, Stainless 316

Minimum-width body flange provides maximum body opening
External formed 90-degree body flange
Panel mounting studs fit optional Concept panels and other accessories
Mounting holes in back of body for direct mounting or for optional external mounting brackets
Type 316 stainless steel hidden hinges promote clean aesthetic appearance
Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
Quarter-turn latches furnished with flush slotted insert
Seamless foam-in-place gasket
Self-grounding latch system with double seal
Bonding provision on door; grounding stud on body
Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole

PRODUCT ATTRIBUTES

Height: 20 in / 508 mm
Width: 24 in / 610 mm
Depth: 8 in / 203 mm
Protection Rating: NEMA Type 3R; NEMA Type 4; NEMA Type 4X; NEMA Type 12; NEMA Type 13; IP66
Material: Stainless Steel 316L
Finish: Brushed #4
Color: Unpainted
Body Thickness: 16 ga / 1.59 mm
Door Thickness: 16 ga / 1.59 mm
Panel: CP2420
Conductive Panel: CP2420G
Panel Size: 22.20 x 18.20 in / 564 x 462 mm
Mounting: 22.50 x 18.50 in / 572 x 470 mm
Latch Quantity: 1
Style: Quarter-turn
Weight: 32 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

For indoor or outdoor applications that require corrosion protection from chemicals and water. Concept Enclosures feature streamlined styling with an attractive stroked finish and flush quarter-turn latches for secure closure.

Purchase panels separately. Optional stainless steel, composite and aluminum panels are also available for most sizes.

Optional NEMA style steel and stainless steel panels require conversion kit catalog number CCPM4.

BULLETIN NUMBER

CWS

Other Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
