Description

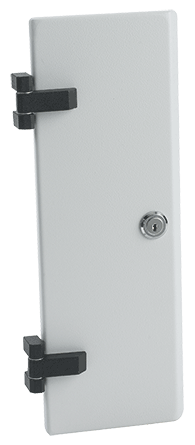

Drive Access Door for Concept HMI Enclosure, 13.15x4.61x0.56, Lt Gray, Steel
- Installation template and hardware are included
- Cannot be used on 120-mm deep enclosures
- Hinges have RAL 9005 black polyester powder paint finish
PRODUCT ATTRIBUTES
- Height: 13.15 in / 334 mm
- Width: 4.61 in / 117 mm
- Depth: 0.56 in / 14 mm
- Material: Mild Steel
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 16 ga / 1.52 mm
- Weight: 1.9 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Drive door can be installed only on enclosures to access internal disk drives. Key-locking latch is included. Maintains NEMA Type 12 rating.
BULLETIN NUMBER
C2
