Product Overview

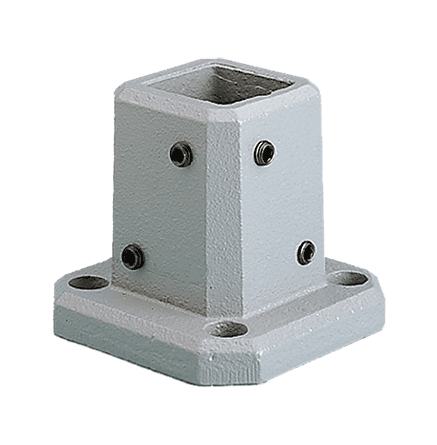

Compact Series 2 Rotational Base Bracket 15-Degree, fits 45x60mm, Lt Gray, Alum
- Coupling can rotate 300 degrees with stop
- Enclosure is mounted at a 15-degree incline angle
- Installation hardware, mounting fasteners and gasket included
- Surface mounting fasteners are not provided
PRODUCT ATTRIBUTES
- Height: 1.77 in / 45 mm
- Width: 2.36 in / 60 mm
- Material: Aluminum
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Weight: 2.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Compact Series 2 Rotational Base Bracket, 15-degree attaches the enclosure directly to a horizontal surface, enabling 300-degree enclosure rotation and 15-degree angle tilt.
BULLETIN NUMBER
CS4
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
