Hoffman C16C36 Mild Steel Consolet

Hoffman C16C36 Mild Steel Consolet

$656.00
SKU:
C16C36
Shipping:
Calculated at Checkout
Product Type:
Console Enclosures
Material:
Steel
Nema Rating:
Type 12
Height:
16
Width:
36
Depth:
11.09
In Stock
Available
Before Ordering

Availability and lead times may vary. Request a quote if you need to confirm availability before placing your order.

Manufacturer Information

Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.

Family Owned Since 1932
Nationwide Shipping Serving all 50 states
Technical Support Product selection assistance
Project Assistance Quotes and sourcing support

Description

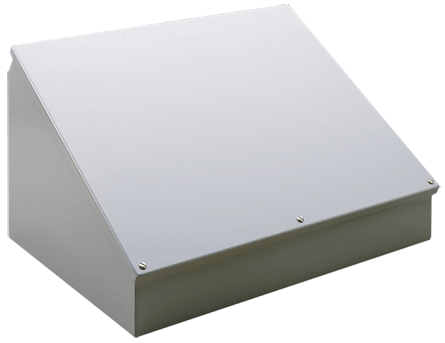

Consolet Enclosure Type 12, 16.00x36.00x11.09, Gray ANSI 61, Mild Steel

  • Can be positioned on either of two sides to provide a 30- or 60-degree surface access
  • Seams continuously welded and ground smooth
  • No holes or knockouts
  • Captivated cover screws thread into sealed wells
  • Bonding provision on cover
  • Oil-resistant gasket and adhesive
  • Continuous hinge

PRODUCT ATTRIBUTES

  • Height: 16 in / 406 mm
  • Width: 36 in / 914 mm
  • Depth: 11.09 in / 282 mm
  • Protection Rating: NEMA Type 12; NEMA Type 13; IP65
  • Material: Mild Steel
  • Color: Gray
  • Color Code: ANSI 61
  • Finish: Powder Coated
  • Thickness: 14 ga / 1.9 mm
  • Weight: 41.84 lb

ADDITIONAL PRODUCT DETAILS

Consolets are ideal for mounting small control or instrumentation devices where the desirable access requires a 30- or 60-degree surface. These enclosures can be mounted on either of two sides for placement on desktops, pedestals or other flat surfaces to achieve maximum flexibility.

BULLETIN NUMBER

C5
