Description

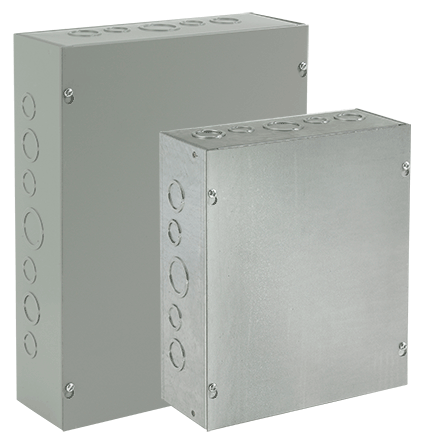

Screw-Cover Enclosure Type 1 no Knockouts, 18x12x8, Galvanized, Steel
- Unique keyhole screw slots in the cover
- Available with or without knockouts
- Various sizes of easy-to-remove concentric knockouts on all four sides of standard boxes with knockouts
- Optional flush-mounted door frame available
- Optional flush covers
- Flat, removable covers fastened with plated steel screws
- Provision for grounding
- Mounting holes on back of box
- Enclosures are finished with paint over plated surfaces
PRODUCT ATTRIBUTES
- Height: 18 in / 457 mm
- Width: 12 in / 305 mm
- Depth: 8 in / 203 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Finish: Galvanized
- Color: Unpainted
- Body Thickness: 16 ga / 1.52 mm
- Door Thickness: 16 ga / 1.52 mm
- Style: Galvanized
- Knockouts Included: No
- Cover Screw Quantity: 4
- Weight: 15.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
ADDITIONAL PRODUCT DETAILS
Screw-Cover, Type 1, is used in commercial and general industrial applications that require a junction or pull box. It is available in painted or galvanized finishes, with or without knockouts, and in a wide range of sizes. It has a variety of accessories for flush installations and wiring space extensions.
BULLETIN NUMBER
A90P1
