Description

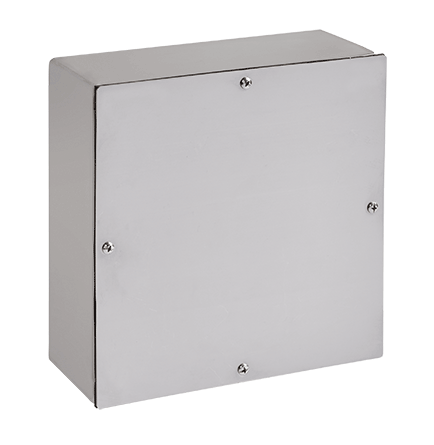

Screw-Cover Type 4X, 10.00x10.00x4.00, Brushed, SS304
- Seams continuously welded and ground smooth
- Oil-resistant gasket and adhesive
- Captivated stainless steel cover screw threaded into sealed walls
- No holes or knockouts
- Grounding stud on inside back of box
PRODUCT ATTRIBUTES
- Height: 10 in / 254 mm
- Width: 10 in / 254 mm
- Depth: 4 in / 102 mm
- Protection Rating: NEMA Type 4X; IP66
- Material: Stainless Steel 304
- Finish: No. 2B
- Color: Unpainted
- Body Thickness: 14 ga / 1.98 mm
- Door Thickness: 12 ga / 2.78 mm
- Cover Screw Quantity: 4
- Weight: 9.6 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Stainless Steel Screw-Cover, Type 4X is used as a junction box or pull box and is a cost-efficient solution for commercial and industrial applications that require corrosion protection.
BULLETIN NUMBER
A90S4
