Description

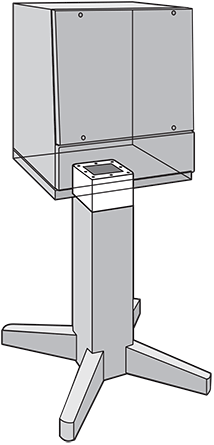

Pedestal Extension, 6.00x8.00x8.00, Brushed, SS304
- Gasket and mounting hardware is included
PRODUCT ATTRIBUTES
- Height: 6 in / 152 mm
- Width: 8 in / 203 mm
- Depth: 8 in / 203 mm
- Material: Stainless Steel 304
- Color: Unpainted
- Finish: Brushed
- Thickness: 14 ga / 1.98 mm
- Weight: 7.3 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Pedestal Extension, Stainless Steel can be used with Stainless Steel Pedestal to provide additional 6-in. (152-mm) of height for standing position. Extension will accept pedestal accessories that are not stainless steel. These include swivel tilt, swivel and angle adapters.
BULLETIN NUMBER
P1S
