Description

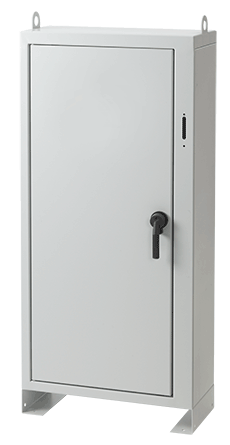

Free-Stand Type 1, 84.00x72.00x24.00, Gray, Steel
- Enclosure back is 12 gauge for increased stiffness
- 4-in. high 10 gauge steel integral lifting base
- Heights from 48 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
- Sturdy 7 gauge lifting tabs
- Flush doors
- 3-point latch with heavy-duty handle
- Padlock provision in handle
- Predrilled holes in lifting base provide bolt-down capability
- Easily reversible doors on single-door models
- Overlapping doors with no center post on two-door models
- Bonding provision on each door
- Studs included for mounting optional panels on threaded bolts
- Optional rack angles mount to top and bottom of front flanges
- Removable back covers
PRODUCT ATTRIBUTES
- Height: 84 in / 2134 mm
- Width: 72 in / 1829 mm
- Depth: 24 in / 610 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Conductive Panel: A73P68NG
- Panel: A73P68N
- Panel Size: 73.16 in / 1858 mm / 68 in / 1727 mm
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 671 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Data Sheet
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
Free-Stand Type 1 Enclosures are an economical way to protect equipment and employees in applications that do not require extensive environmental protection.
Order panels separately.
BULLETIN NUMBER
A38
