Description

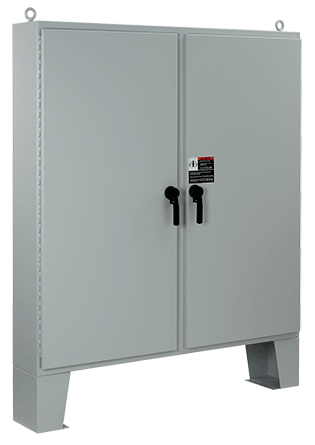

Two-Door Floorstand and 3pt Latch Type 4, 74.06x60.06x18.06, Gray, Steel
- Three-point latch for security and ease of use
- Return flange around the door opening excludes liquids and contaminants
- Removable centerpost permits easy panel installation
- 3-point latch system with PowerGlide padlocking handles
- Seams continuously welded and ground smooth; no holes or knockouts
- Body stiffeners
- Panel supports
- Heavy gauge continuous hinge with stainless steel hinge pin
- Data pocket is high-impact thermoplastic
- 12-in. floor stands are welded to enclosure
- Heavy-duty lifting eyes
- Oil-resistant door gasket
- Collar stud for mounting optional panels
- Grounding stud on body
- Bonding provision on door
- Provision for mounting fluorescent light
PRODUCT ATTRIBUTES
- Height: 74.06 in / 1881 mm
- Width: 60.06 in / 1526 mm
- Depth: 18.06 in / 459 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 3; IP66
- Material: Mild Steel
- Panel: A72P60
- Conductive Panel: A72P60G
- Body Stiffener: 21 in / 533 mm
- Panel Size: 68.00 x 56.00 in / 1727 x 1422 mm
- Color: Gray
- Color Code: ANSI 61
- Finish: Powder Coated
- Thickness: 12 ga / 2.66 mm
- Weight: 576 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Engineering Specification
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS
These enclosures are ideal for indoor or outdoor applications where it is necessary to protect controls and instrumentation from wet, non-corrosive environments. The design features HOFFMAN's exclusive PowerGlide Handle with 3-point latching for secure closure and floor stands that provide additional height and access for cleaning under the enclosure.
Order panel separately.
BULLETIN NUMBER
A4L3
