Description
PRODUCT ATTRIBUTES
- Height: 72.06 in / 1830 mm
- Width: 36.06 in / 916 mm
- Depth: 24.06 in / 611 mm
- Protection Rating: NEMA Type 12; NEMA Type 4; NEMA Type 4X; NEMA Type 3R; IP66
- Material: Stainless Steel 304
- Panel: A72P36F1
- Conductive Panel: A72P36F1G
- Panel Size: 60.00 x 32.00 in / 1524 x 813 mm
- Color: Unpainted
- Finish: Brushed #4
- Thickness: 14 ga / 1.98 mm
- Weight: 326 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Engineering Specification
Installation Manual / Instruction Sheet
ADDITIONAL PRODUCT DETAILS

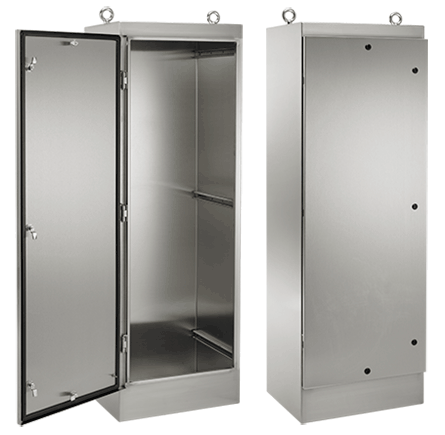

This single-door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the pharmaceutical, food and beverage, packaging, water, petroleum and chemical processing industries.
Enclosures have 12 gauge backs
BULLETIN NUMBER
A4S2
