Description
APPLICATION:

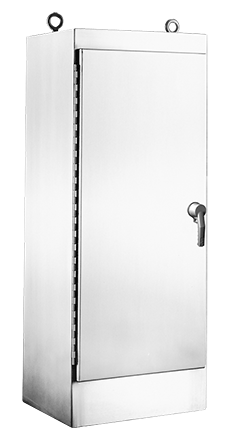

Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. The addition of 19-in. rack-mounting accessories makes these enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries.
Four styles are available to provide maximum flexibility:
- 1. One-Door Single-Access Enclosures (single door on front)
- 2. One-Door Dual-Access Enclosures (single door on front and rear)
- 3. Two-Door Single-Access Enclosures (doors close on a removable centerpost)
- 4. Two-Door Dual-Access Enclosures (doors close on a removable centerpost on front and rear)
SPECIFICATIONS:
- 12 gauge Category 304 stainless steel
- Seams continuously welded and ground smooth; no holes or knockouts
- Two-door enclosures provided with a removeable centerpost for easy panel installation
- Heavy-duty lifting eyes are Category 316L stainless steel
- Heavy-duty three-point latching mechanism operated by Category 316L stainless steel POWERGLIDE padlocking handle
- Seemless foam-in-place gasket assures a water-tight and dusttight seal
- Body flange trough collar excludes liquids and contaminants
- Heavy-gauge continuous hinges support each door
- High-impact thermoplastic data pocket provided with each enclosure
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Optional panels and rack mounting angles can be mounted anywhere along channels
- Bonding provision on door; grounding stud on body
- Accessory mounting channel provided in enclosure top
To meet GR-63-CORE Zone 4 seismic standards, Free-Stand enclosures must include the following accessories (purchased separately):
For Seismic Free-Stand with Panel:
- Seismic Mounting Plate Kit
- Seismic Panel Mounting Kit
- Panel, Full-Length
For Seismic Free-Stand with Rack Angles:
- Seismic Mounting Plate Kit
- Rack Mounting Angles - L-Style (Category RP), Full
FINISH:
- Enclosures are unpainted. Cover, sides, top and bottom have smooth #4 brushed finish.
- Optional steel panels, swing-out panels, side-mounted panels, rack-mounting frames, heavy-duty panel supports and center panel supports are white.
- Optional full, half and side-mounted conductive panels are available.
ACCESSORIES:
- Caster Kit
- Clamping Nut Package
- Floor Stand Kit, Stainless Steel
- Panel Support Kit
- Panels for Category 3R, 4, 4X, 12 and 13 Enclosures
- Rack Mounting Angles, L-Style (Category RP)
- Seismic Mounting Plate Kits
- Seismic Panel Mounting Kits
