Description

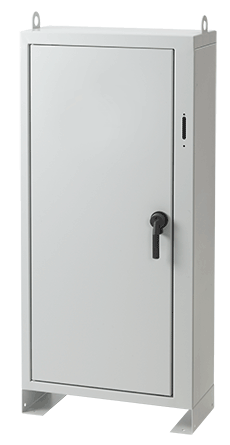

Free-Stand Disconnect Enclosure Type 1, 60.00x27.00x12.00, Gray, Steel
- 4-in. high 10 gauge steel integral lifting base
- Modified preferred disconnect cutout
- Heights from 60 in. to 84 in. Usable height inside cabinet 4 in. less than nominal height.
- Sturdy 7 gauge lifting tabs
- Flush doors
- 3-point latch with heavy-duty handle
- Screwdriver defeater in handle on master door
- Padlock provision in handle
- Predrilled holes in lifting base provide bolt-down capability
- Bonding provision on each door
- Studs included for mounting optional panels on threaded bolts
- Optional rack angles mount to top and bottom of front flanges
PRODUCT ATTRIBUTES
- Height: 60 in / 1524 mm
- Width: 27 in / 686 mm
- Depth: 12 in / 305 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Panel Size: 49.16 x 21.50 in / 1249 x 546 mm
- Conductive Panel: A49P21NG
- Panel: A49P21N
- Use Rack Angle: ARA6019THG
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Powder Coated
- Thickness: 14 ga / 1.9 mm
- Weight: 179 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Free-Stand Disconnect Enclosures, Type 1, are an economical way to protect electrical and electronic equipment in applications that do not require extensive environmental protection.
Purchase panels separately.
Catalog weights and dimensions are careful estimates but not guaranteed.
BULLETIN NUMBER
A38D
