Description

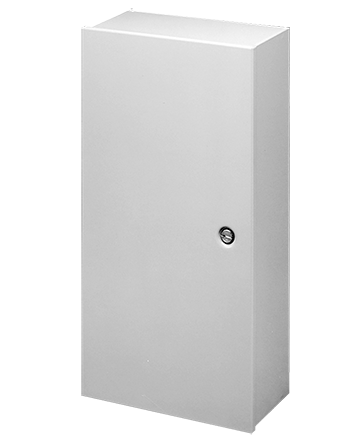

Large Hinged-Cover Type 1, 48.00x36.00x9.25, Gray, Steel
- Continuous hinge on door
- Slotted flush latch; optional latches available
- Collar studs provided for mounting optional panels
- Mounting holes on back of enclosure for optional mounting bracket kit, AMFLN1
PRODUCT ATTRIBUTES
- Height: 48 in / 1219 mm
- Width: 36 in / 914 mm
- Depth: 9.25 in / 235 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Thickness: 14 ga / 1.9 mm
- Panel Size: 45.00 x 33.00 in / 1143 x 838 mm
- Panel: A48P36
- Mounting Bracket Kit: AMFLN1
- Weight: 113 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Large Hinged-Cover, Type 1, have a size range of 42 x 30 -in. to 48 x 36-in., mounting provision for optional panel, and meet basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures
Purchase panels separately. Optional aluminum panels are available for most sizes.
Mounting Bracket Kit must be ordered separately.
BULLETIN NUMBER
A1L
