Description

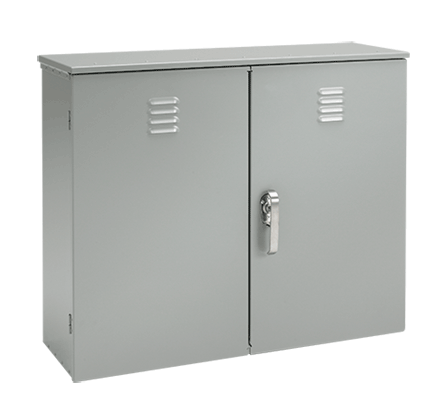

CT Cabinet Vented Double-Door Type 3R, 42.00x36.00x14.00, Gray, Aluminum
- Double door with 3-point latch that includes padlock feature
- Lift-off hinges for removable doors
- Ventilating louvers with insect barrier
- Welded 1.625 x 1.625 in. mounting channel
PRODUCT ATTRIBUTES
- Height: 42 in / 1067 mm
- Width: 36 in / 914 mm
- Depth: 14 in / 356 mm
- Protection Rating: NEMA Type 3R; IP32
- Material: Aluminum
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Thickness: 11 ga / 2.3 mm
- Construction: Aluminum; riveted
- Weight: 74.5 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
CT Cabinet, Vented Double-Door, Type 3R are used for mounting instrument current transformer, have a welded mounting channel, have a ventilation provision with insect protection, a padlock feature, and are available in a variety of sizes, models to fit a wide range of applications.
A364214BGECT and A423614BGECT aluminum models are .100-inch (2.5mm) thick.
Catalog weights and dimensions are careful estimates but not guaranteed.
BULLETIN NUMBER
ARCT
