Product Overview

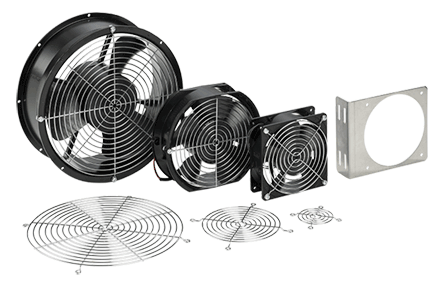

Compact Axial Fan 3-inch Lead Wires, 24VDC 40CFM, Black, Steel
- Maximum operating temperature is 158 F (70 C)
- 4-inch fan is thermally protected and uses permanently lubricated ball bearings
- 6- and 10-inch fans have ball-bearing construction and split-capacitor motors
- Split-capacitor motors are thermally protected to avoid premature failure
- Dynamically balanced impellers molded from polycarbonate material
- One finger guard is furnished (additional finger guards are available)
- All mounting hardware is provided
- 240 and 560 CFM fans have ball bearing construction and split capacitor motors
- Fans have leadwires with ends stripped 1/2-inch (12-mm) or 6-foot (1.8-m) cord with polarized plug for power connections
- Fan bracket and additional finger guards must be purchased separately
PRODUCT ATTRIBUTES
- Height: 3.14 in / 80 mm
- Width: 4.62 in / 117 mm
- Depth: 1.5 in / 38 mm
- Airflow: 40 ft³/min / 69 m³/h
- Nominal Voltage: 24 V
- Voltage DC: 24 V
- Max Current: 0.14 A
- Material: Mild Steel
- Fan Diameter: 3.15 in
- Finish: Powder Coated
- Color: Jet Black
- Color Code: RAL 9005
- Weight: 0.46 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Compact Cooling Fans are ideal for applications where enclosure space is limited and quiet, reliable cooling is required. Engineered for 50,000 hours of continuous operation without lubrication or service.
BULLETIN NUMBER
D85
