Description

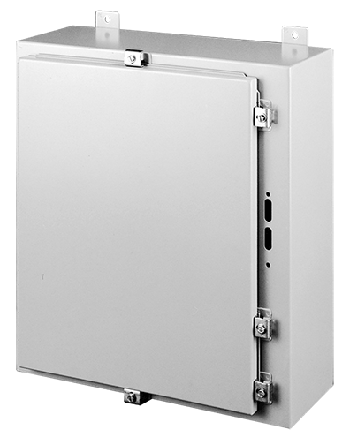

Disconnect Enclosure with Clamps Type 4, 36.00x31x8.00, Gray, Steel
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Removable door with continuous hinge
- Type 4 rated door gasket
- Collar studs for mounting optional panels
- Holes in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door
- Adjustable door interlock bracket fastened to door) and instructions for installing disconnects
PRODUCT ATTRIBUTES
- Height: 36 in / 914 mm
- Finish: Powder Coated
- Width: 31.38 in / 797 mm
- Color: Gray
- Depth: 8 in / 203 mm
- Protection Rating: NEMA Type 4; IP66
- Material: Mild Steel
- Panel Size: 33.00 x 27.00 in / 838 x 686 mm
- Conductive Panel: A36P30G
- Clamp Quantity: 7
- Data Pocket Size: 12.00 x 12.00 in / 305 x 305 mm
- Panel: A36P30
- Color Code: ANSI 61
- Thickness: 14 ga / 1.9 mm
- Weight: 85 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
For disconnect applications in which a clamp-secured door is preferred. Clamps on three sides of the door keep liquid and contaminants out. Preferred cutout accepts major brand disconnect switches and circuit breakers..
Each Disconnect Enclosure with Clamps, Type 4 is furnished with adjustable door interlock bracket fastened to door, instructions to locate and install disconnect switches, circuit breakers and operating mechanisms.
Purchase panels separately.
NOTE: nVent HOFFMAN cannot guarantee compatibility of disconnect configurations with third-party latching.
BULLETIN NUMBER
A19
