Description
Locking Utility Cabinets with Shelves, Type 1, 30.00x24.00x12.00, Gray, Steel
- Removable door with reversible hinge; door can hinge from either left or right side and can be changed without tools
- Key hook and shelf models of this cabinet protect fuses and other components and can be equipped with a combination lock for applications that require security

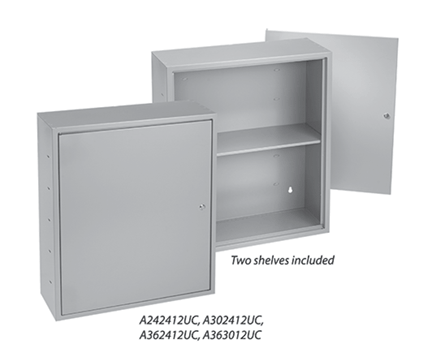

- SHELF MODELS A242412UC, A302412UC, A363012UC: Shelf cabinets provide a level of security for storage of equipment, fuses, and other components
- Two shelves included with shelf models are easily adjusted without tools by placing tabs in slots located on enclosure sides
- KEY HOOK MODEL A12122UC: Use as a key cabinet or a hanging locker to organize items that require a level of security
- Key hook model has integral hooks assembled in door and back of enclosure
- Four mounting keyholes in back of enclosure
- Door has quarter-turn key lock; two keys included
- Combination lock is available as an accessory and is interchangeable with standard cutout and latch cam
- Retractable spring hinge
- No gasketing
PRODUCT ATTRIBUTES
- Height: 30 in / 762 mm
- Width: 24 in / 610 mm
- Depth: 12 in / 305 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Thickness: 16 ga / 1.52 mm
- Mounting Holes: 22
- Mounting: 558 mm / 18 in / 457 mm
- Max Shelf Locations Hooks Quantity: 4 Shelves
- Weight: 65.55 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Locking Utility Cabinets, Type 1, are available in key hook and shelf models, are used to protect fuses and other components and can be equipped with a combination lock for applications that require security.
BULLETIN NUMBER
A1UC
INDUSTRY STANDARDS
UL 50, 50E Listed; Type 1; File Number E27567
cUL Listed per CSA C22.2 No 40; Type 1; File Number E27567
NEMA/EEMAC Type 1
IEC 60529, IP30
