Description

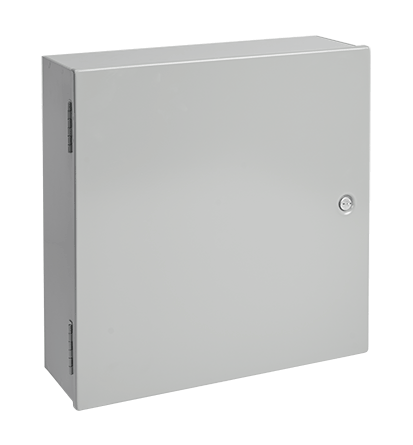

Medium Hinged-Cover, Type 1, 24.00x24.00x12.62, Gray, Steel
- Butt hinges on door
- Collar studs provided for mounting optional panel
- Slotted flush latches; optional latches available
- Mounting holes on back of enclosure
PRODUCT ATTRIBUTES
- Height: 24 in / 610 mm
- Width: 24 in / 610 mm
- Depth: 12.62 in / 321 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Finish: Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Thickness: 12 ga / 2.66 mm
- Panel Gauge: 12
- Panel: A24N24MP
- Perforated Panel: A24N24MPP
- Panel Size: 21.00 x 22.50 in / 533 x 572 mm
- Weight: 53 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Medium Hinged-Cover Pull Box, Type 1, have a size range of 16 x 12 -in. to 36 x 30-in., mounting provision for optional panel, and meet basic functionality requirements for indoor applications that do not require oil- or dust-tight enclosures.
Purchase panels separately.
The following Perforated Panels are flanged on four sides: A24N24MPP, A30N20MPP, A30N24MPP, A30N30MPP, A36N24MPP and A36N30MPP.
BULLETIN NUMBER
A1M
