Description

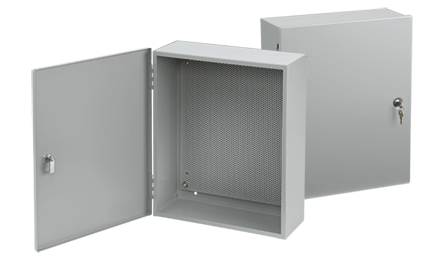

Hinged-Cover with Perforated Panel, Type 1, 20.00x16.00x6.62, Gray, Steel
- Door has key lock quarter-turn latch; two keys included
- Select models have concentric knockouts on four sides
- Includes removable, 16-gauge, ANSI 61 gray, perforated panel
PRODUCT ATTRIBUTES
- Panel Size: 17.00 x 14.50 in / 432 x 368 mm
- Mounting Holes: 17.88 x 11.00 in / 454 x 279 mm
- Knockout Pattern Along A Sides: A-B-C-D-E-F-G-H-I
- Knockout Pattern Along B Sides: B-C-D-E-F-G-H
- Color: Gray
- Color Code: ANSI 61
- Thickness: 16 ga / 1.52 mm
- Weight: 24.1 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Hinged-Cover with Perforated Panel, Type 1, ships with pre-installed panel that accepts self-tapping screws and eliminates the need to measure, mark and drill when mounting components, which results in labor and time savings.
BULLETIN NUMBER
A1PP
