Product Overview

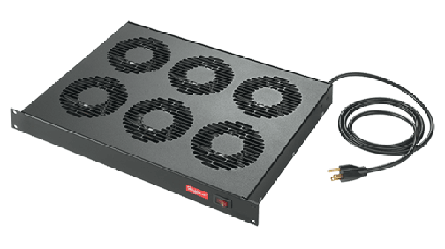

19-in. Rack-Mountable Tray, 19in x 1Ux12.52, Steel
- Fan trays available with either three or six 4-inch fans
- Includes 72-inch (1829-mm) power cord with IEC 320 standard power socket
- Power cord plugs into standard 115 VAC outlet
- Lighted rocker switch provides on-off control and indicates when fans are on
PRODUCT ATTRIBUTES
- Fan Quantity: 6
- Height: 1.67 in / 42.418 mm
- Max CFM: 506 ft³/(min/ft²)
- Width: 19 in / 482.6 mm
- Depth: 12.96 in / 329.184 mm
- Max m3/hr: 860 m³/h
- Voltage AC: 100 - 120 VAC
- Nominal Watts: 90 W
- Max Temperature: 158 °F / 70 °C
- Material: Mild Steel
- Color: Jet Black
- Color Code: RAL 9005
- Finish: Powder Coated
- Thickness: 16 ga / 1.52 mm
- Weight: 15.56 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Fan trays enhance the natural convection airflow within a cabinet when installed with other 19-inch rack-mount equipment.
BULLETIN NUMBER
DTHRM
Other Information
Hoffman has a $50 fee on all air orders. This fee will be incorporated into the shipping price. Hoffman orders of $7500 or more ship for free.
