Product Overview

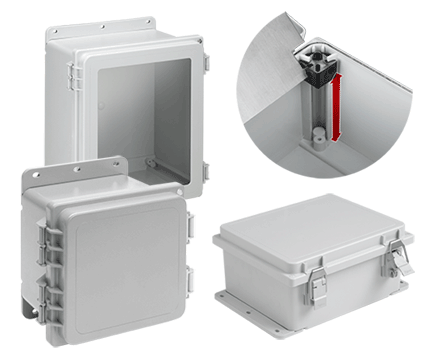

PolyPro Type 4X, 16.02x14.01x8.35, Lt Gray, Polyester

Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
Resists cracking and provides excellent impact resistance
Lighter-weight than fiberglass
Recyclable
Easy, dustless in-field modifications using standard tools
Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
Removable snap-hinge cover allows for easy access to cover and body for modifications
Molded layout grid on inside of body and solid covers assists with component mounting
Molded-in embosses for rear panel mounting
Optional cover screws included with all models
Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
Scratch-resistant polycarbonate windows
Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)

PRODUCT ATTRIBUTES

Height: 16.58 in / 421 mm
Width: 14.58 in / 370 mm
Depth: 8.35 in / 212 mm
Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
Material: Polyester
Panel Size: 14.75 x 12.88 in / 375 x 327 mm
Aluminum Panel: A16P14AL
Steel Panel: A16P14
Cover Style: Solid
Color: Light Gray
Color Code: RAL 7035
Finish: Smooth Matte
Thickness: 0.13 in / 3.3 mm
Weight: 9.9 lb

DRAWINGS AND DOCUMENT DOWNLOADS

ADDITIONAL PRODUCT DETAILS

PolyPro polyester enclosures perform exceptionally well in applications where harsh chemicals, weather extremes and corrosive environments demand toughness from a lightweight enclosure. Providing excellent ultraviolet protection and a tight environmental seal, these versatile, feature-rich enclosures are also recyclable.

Purchase panels separately. Panels are available in aluminum, mild steel, stainless steel, conductive and composite materials.

BULLETIN NUMBER

PCR

INDUSTRY STANDARDS

UL 508A Listed; Type 4, 4X, 12, 13; File No. E61997

cUL Listed per CSA C22.2 No 94; Type 4, 4X, 12, 13; File No. E61997

Enclosure flammability evaluated per UL 508A

Window flammability evaluated per UL 508A

Mounting brackets required to meet UL/CSA external mounting requirements.

NEMA/EEMAC Type 4, 4X, 12, 13

CSA File No. 42186; Type 4, 4X, 12, 13 (solid covers only)

IEC 60529, IP66
