Description

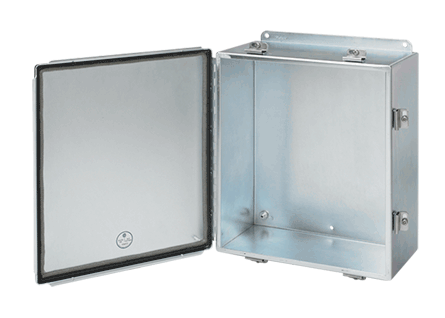

Continuous Hinge with Clamps, EMC, Type 12, 12.00x10.00x5.00, Steel
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- Combination woven steel mesh and oil-resistant gasket
- Stainless steel cover clamps and screws
- Weldnuts provided for mounting optional panels and terminal kits in size 6.00 x 4.00 in. (152 x 102mm) and larger
- Shielding effectiveness greater than 80 dB at 1 GHz
PRODUCT ATTRIBUTES
- Height: 12 in / 305 mm
- Width: 10 in / 254 mm
- Depth: 5 in / 127 mm
- Protection Rating: NEMA Type 12; IP54
- Material: Mild Steel
- Conductive Panel: A12P10G
- Panel: A12P10
- Panel Size: 10.75 x 8.88 in / 273 x 226 mm
- Mounting: 12.75 x 8.00 in / 324 x 203 mm
- Overall Dimensions: 13.50 x 10.81 in / 343 x 275 mm
- Color: Unpainted
- Finish: Galvanized
- Thickness: 14 ga / 1.9 mm
- Weight: 12.1 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
This enclosure is used in indoor applications to contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference.
Purchase panels separately
BULLETIN NUMBER
A53
INDUSTRY STANDARDS
UL 50, 50E Listed; Type 12, 13; File No. E27567
cUL Listed per CSA C22.2 No. 94; Type 12, 13; File No. E27567
UL 508A Listed; Type 12, 13; File No. E61997
cUL Listed per CSA C22.2 No. 94; Type 12,13; File No. E61997
NEMA/EEMAC Type 12, 13
CSA, File No. 42184: Type 12, 13
IEC 60529, IP54
