Description

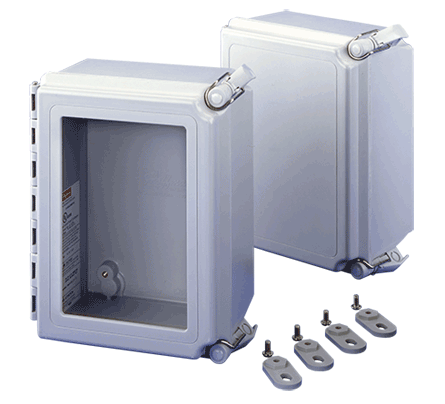

Continuous Hinge QR Window Cover Type 4X, 12.00x10.00x6.00, Fiberglass
- Compression-molded fiberglass has outstanding chemical- and temperature-resistance qualities and exhibits excellent weatherability and physical properties
- Fiberglass is easily punched, drilled, filed or sawed
- Gasket assures water-tight and dust-tight seal
- Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure
- Scratch-resistant polycarbonate windows are permanently bonded in place
- Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits
- Removable hinged cover attached to body with Type 316 stainless steel hinge pin
- Screw-cover enclosures are secured with two captivated Type 316 stainless steel slotted cover screws
- Enclosures with quick-release latches have corrosion-resistant polyester latches located in corners that provide unobstructed access to enclosure
- Hinge pin and bail are corrosion-resistant Type 316 stainless steel
- Padlock provisions included
- Material is halogen-free
PRODUCT ATTRIBUTES
- Height: 12 in / 305 mm
- Width: 10 in / 254 mm
- Depth: 6 in / 152 mm
- Protection Rating: NEMA Type 12; NEMA Type 13; NEMA Type 4; NEMA Type 4X; IP66
- Material: Fiberglass
- Panel Size: 10.75 x 8.88 in / 273 x 226 mm
- Type: Window Cover, Quick Release
- Overall Dimensions: 12.50 x 10.50 in / 318 x 267 mm
- Steel Panel: A12P10
- Mounting: 12.94 x 8.00 in / 329 x 203 mm
- Aluminum Panel: A12P10AL
- Color: Light Gray
- Color Code: RAL 7035
- Finish: Smooth Matte
- Thickness: 0.16 in / 4 mm
- Weight: 5.4 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Additional Reference
Approval Agency Certificate
Installation Manual / Instruction Sheet
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
The efficient design and simple construction of these enclosures make them durable in corrosive environments, yet aesthetically pleasing. Corner latches provide unobstructed access. The continuous hinge provides a secure seal, and double latching creates added security.
Purchase panels separately. Optional stainless steel, aluminum, conductive and composite material panels available for most sizes.
