Description
DESCRIPTION

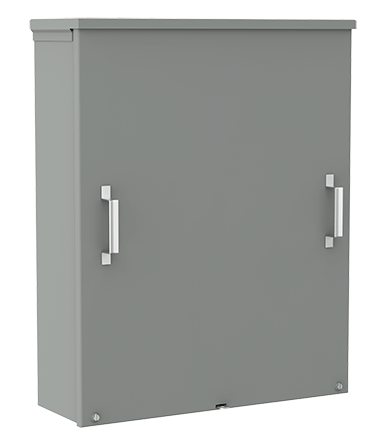

The Hoffman A10R84 Enclosure is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain
FEATURES
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Handles on larger sizes (see table)
- Embossed mounting holes on back of enclosure
- Knockouts in bottom of 16 and 14 gauge enclosures
- Provision for padlocking
- No gasketing
- Enclosures are finished with paint over plated surfaces
- Top and bottom thickness gauge is the same as the body thickness gauge unless otherwise noted in table
PRODUCT ATTRIBUTES
- Height: 10 in / 254 mm
- Width: 8 in / 203 mm
- Depth: 4 in / 102 mm
- Protection Rating: NEMA Type 3R; IP32
- Material: Mild Steel
- Finish: Galvanized; Powder Coated / Galvanized; Powder Coated
- Color: Gray
- Color Code: ANSI 61
- Body Thickness: 16 ga / 1.52 mm
- Door Thickness: 16 ga / 1.52 mm
- Knockouts Included: Yes
- Mounting: 2.25 in / 57 mm / 1.06 in / 27 mm
- Knockout Pattern: F-G-H-I
- Body Style: A
- Weight: 6.4 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
SCREW-COVER, TYPE 3R 2D DXF CAD
SCREW-COVER, TYPE 3R 2D DXF CAD
3D Step
Approval Agency Certificate
Installation Manual / Instruction Sheet
CURRENT TRANSFORMER CABINETS, 400-800 AMP, TYPE 3R INSTRUCTION MANUAL
PADLOCK HASP KIT INSTRUCTION MANUAL
SINGLE-SIDED SHELF REPAINTING INSTRUCTIONS
Spec Sheet / Engineering Specification
SCREW-COVER, TYPE 3R SPEC SHEET
ADDITIONAL PRODUCT DETAILS
Drip-Shield Screw-Cover, Type 3R is used as a wiring or junction box to protect controls in outdoor applications that require protection from rain, sleet, snow or dripping water.
*For the following items, the body top and bottom thickness is 16 gauge (1.6mm): A24R246(NK), A24R248(NK), A30R248(NK), A24R2410(NK), A30R2410.
**For the following items, the body top thickness is 14 gauge (2.0mm) and the body bottom thickness is 16 gauge (1.6mm): A48R368(NK), A24R2412(NK), A30R3012(NK), A36R3012(NK), A36R3612(NK), A30R3016(NK), A48R3616(NK).
BULLETIN NUMBER
A90S3
INDUSTRY STANDARDS
UL 50, 50E Listed; Type 3R; File No. E27525
cUL Listed per CSA C22.2 No 94; Type 3R; File No. E27525
NEMA/EEMAC Type 3R
IEC 60529, IP32
