Description

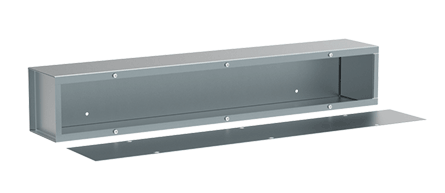

Wiring Trough, NEMA Type 1, 10.00x10.00x48.00, Gray, Steel
- Keyhole screw slots in cover
- Shipped completely assembled—no end caps to install
- Mounting holes on the back of the enclosure
- Flat cover fastened with plated steel screws
- No gasketing or knockouts
PRODUCT ATTRIBUTES
- Type: Trough
- Height: 10 in / 254 mm
- Width: 10 in / 254 mm
- Depth: 48 in / 1219 mm
- Protection Rating: NEMA Type 1; IP30
- Material: Mild Steel
- Mounting: 36 in / 914 mm / 8.01 in / 203 mm
- Color: Unpainted
- Finish: Galvanized
- Thickness: 14 ga / 1.9 mm
- Weight: 50 lb
DRAWINGS AND DOCUMENT DOWNLOADS
2D DXF
3D Step
Approval Agency Certificate
Spec Sheet / Engineering Specification
ADDITIONAL PRODUCT DETAILS
Screw-Cover Wiring Trough, Type 1 is used for protecting wire and cable distribution, junctions and terminations in a variety of indoor applications where protection against dirt or moist is not needed.
BULLETIN NUMBER
F40T1
INDUSTRY STANDARDS
UL 870 Listed; File No. E27524
cUL CSA C22.2 No. 26 Listed; File No. E27524
NEMA/EEMAC: Type 1
IEC 60529, IP30
