Description
Features
- [OnCloud](https://hanwhavisionamerica.com/oncloud/) and [SightMind](https://hanwhavisionamerica.com/sight-mind/) compatible

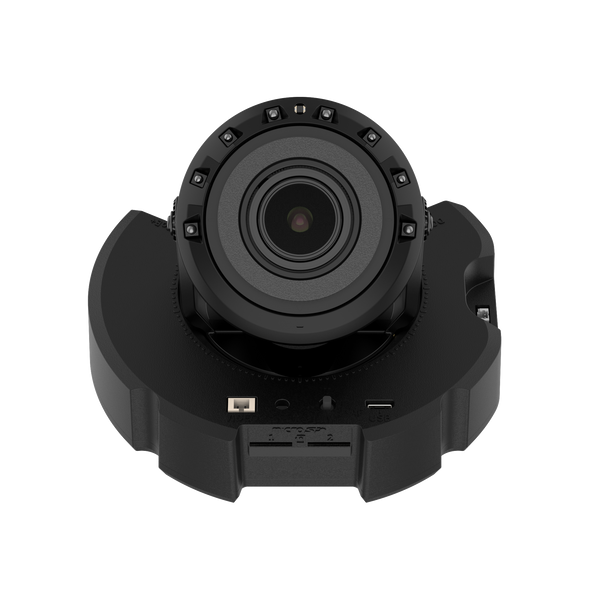

- Camera module for easy upgrade of existing indoor modular cameras
- 6MP resolution
- 4.4~9.3mm (2.1x) motorized varifocal
- Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
- Maximum 30 fps (H.265/H.264)
- WiseIR: IR viewable length 50m (164.04 ft)
- Day & Night (ICR), extremeWDR (120 dB)
- Hard-coated dome bubble
- WiseNR(Based on AI engine), WiseStream III(Based on AI engine)
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
- IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection
- Audio detection, Sound classification, Shock detection, Appear/Disappear
- IP66/IP67/IP6K9K, NEMA4X, IK10+ (depending on camera housing used)
Specifications
Video
- Imaging Device — Size: 1/1.8"
- Imaging Device — Type: CMOS
- Resolution: 3328x1872, 3072x1728, 2688x1520, 2592x1944, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Max. Framerate — H.265/H.264: 30fps/25fps(60Hz/50Hz)
- Max. Framerate — MJPEG: 30fps(@6MP Max. 5fps)
- Min. Illumination (Lux) — Color(1/30sec, 30IRE): 0.04
- Min. Illumination (Lux) — BW(1/30sec, 30IRE): 0.004
- Video Out: CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
Lens
- Focal Length (mm): 4.4~9.3
- Zoom Ratio — Optical: 2.1x
- Max Aperture Ratio (F number) — Wide: 1.3
- Max Aperture Ratio (F number) — Tele: 2.15
- Angular Field of View — Horizontal: 113°~47°
- Angular Field of View — Vertical: 58°~26°
- Angular Field of View — Diagonal: 138°~54°
- Min. Object Distance: 0.5m(1.64ft)
- Focus Control: Simple focus, Manual
- Lens Type: P iris(IR corrected)
Pan / Tilt / Rotate
- Pan / Tilt / Rotate Range — Pan: 0°~360°
- Pan / Tilt / Rotate Range — Tilt: 0°~85°
- Pan / Tilt / Rotate Range — Rotate: 0°~355°
Operational
- Day & Night: Auto(ICR)
- Backlight Compensation: BLC, HLC, WDR, SSDR
- Wide Dynamic Range (dB): 120
- Digital Noise Reduction: WiseNRⅡ(Based on AI engine), SSNRⅤ
- Digital Image Stabilization: Support(built-in gyro sensor)
- Defog: Support
- Motion Detection — Quantity: 8ea
- Motion Detection — Shape: 8point Polygonal zones
- Privacy Masking — Quantity: 32ea
- Privacy Masking — Shape: 4point Quadrangle zones
- Privacy Masking — Color / Option: Gray, Green, Red, Blue, Black, White, Mosaic
- Gain Control: Off, Max gain, Manual
- White Balance: ATW, NarrowATW, AWC, Manual, Indoor, Outdoor
- LDC: Support(Fill/stretch mode)
- Electronic Shutter — Mode: Minimum, Maximum, Anti flicker, Prefer shutter control(Based on AI engine)
- Electronic Shutter — Speed Range: 2~1/12,000sec
- Video Rotation: Flip, Mirror, Hallway view(90°/270°)
- Alarm Interface — In/Out: 2 configurable I/O ports
- Alarm Interface — Others: 12VDC output
- Alarm Triggers: Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
- Alarm Events When Alarm Trigger Occurred: File upload(image): e-mail/FTP/SFTP, File upload(video clip): FTP/SFTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication
- Audio In: Selectable(mic in/line in)
- Audio Out: Line out
- Light Type: IR LED
- Light Viewable Length — IR: WiseIR 50m(164.04ft)
- IR Wavelength: 850nm
Analytics
- Classified Object Type: Person, Face, Vehicle, License plate
- Attributes — Vehicle: Type(car, bus, truck, motorcycle, bicycle)
- Thumbnail: DetectionShot
- Analytics Events — Based on AI Engine: Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit), Motion detection
- Normal: Defocus detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- Business Intelligence — Based on AI Engine: People counting, Queue management, Heatmap, Vehicle counting
Network
- Ethernet: Metal shielded RJ-45(10/100/1000BASE-T)
- Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
- Audio Compression: G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Smart Codec: Manual, WiseStreamⅢ
- Bitrate Control: H.265/H.264: CBR or VBR, MJPEG: VBR
- Streaming — Unicast: Up to 20 users
- Streaming — Multicast: Support
- Multiple Streaming: Up to 10 profiles
- Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
- Application Programming Interface — ONVIF: S, G, T, M
- Application Programming Interface — Others: SUNAPI(HTTP API), Hanwha Vision Open Platform
- Direct Cloud Connection: Support
Security
- OS / Firmware Protect: Encrypted firmware, Secure boot, Signed firmware
- User authentication: Digest authentication, Prevent brute-force attack
- Network authentication: IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
- Secure Communication: HTTPS, WSS(WebSocket Secure), SRTP
- Access Control: IP-based access control
- Data Protect: Encryption credentials, Encrypt compress for live recording file export
- Audit: Access / System / Event Log management
- Device ID: Device certificate(Hanwha Vision Root CA)
- Secure Storage: TPM(Trusted platform module), HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt(AES-256)
- Security Certificate: TPM 2.0 with FIPS 140-2 level2
General
- Memory — RAM: 4GB
- Memory — Flash: 512MB
- Edge Storage — Micro SD/SDHC/SDXC: Max. 512GB x 2slot(Total 1TB)
- Edge Storage(OnCloud) — Micro SD/SDHC/SDXC: Max. 1TB x 2slots (Total 2TB) \*Hanwha Vision branded microSD cards have been certified and recommended for OnCloud edge recording.
Environmental & Electrical
- Operating Condition — Temperature: -50°C~+60°C(-58°F~+140°F)
- Operating Condition — Humidity: 0~100% RH(condensing)
- Operating Condition — Others: Start up should be done at above -30°C, Based on using the camera with housing ※ Supported housing: XNV-6083R, XNV-9082R, XNV-8082R
- Storage Condition — Temperature: -50°C~+60°C(-58°F~+140°F)
- Storage Condition — Humidity: 0~90% RH(non-condensing)
- Input Voltage: PoE+(IEEE802.3at, Class4), 12VDC
- Power Consumption — PoE: Max. 22.5W, typical 17.9W
- Power Consumption — 12VDC: Max. 20W, typical 15.6W
- Power Redundance Failover: Support
Mechanical
- Color: Black
- Material: Aluminum
- Product Dimensions: ø137.7x104.9mm(5.42x4.13")
- Product Weight: 750g(1.66lb)
Certifications & Standards
- Environment: IEC 60529 IP66, IEC 60529 IP67, ISO 20653 IP6K9K, IEC 62262 IK10+
DORI (EN62676-4 standard)
- Detect (25PPM/ 8PPF) — Wide: 44.1m(144.54ft)
- Detect (25PPM/ 8PPF) — Tele: 153.1m(502.22ft)
- Observe (63PPM/ 19PPF) — Wide: 17.6m(57.82ft)
- Observe (63PPM/ 19PPF) — Tele: 61.2m(200.89ft)
- Recognize (125PPM/ 38PPF) — Wide: 8.8m(28.91ft)
- Recognize (125PPM/ 38PPF) — Tele: 30.6m(100.44ft)
- Identify (250PPM/ 76PPF) — Wide: 4.4m(14.45ft)
- Identify (250PPM/ 76PPF) — Tele: 15.3m(50.22ft)
