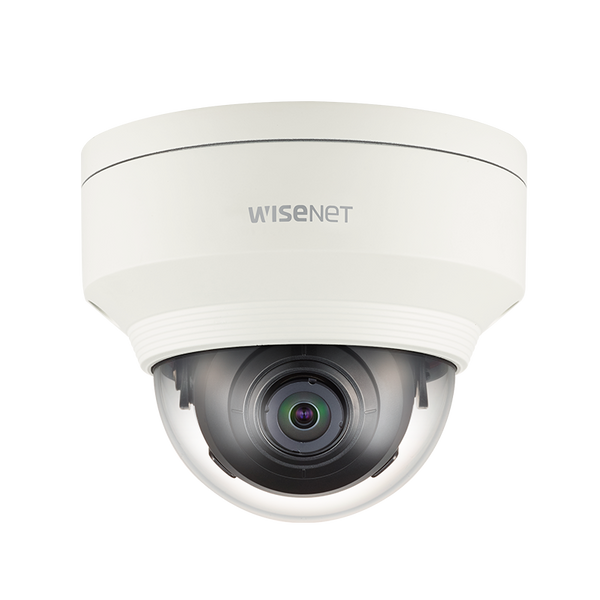

Description
Features
- 2 megapixel (1920 x 1080) resolution
- Built-in 2.4mm fixed lens
- 60fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day & Night (ICR), WDR (150dB), Defog
- Loitering, directional detection, fog detection, audio detection, digital auto tracking, sound classification, heatmap, People counting, Queue management, Tampering
- Motion detection, Handover
- SD/SDHC/SDXC memory slot (Max. 512GB), PoE / 12V DC
- Hallway view, WiseStream II support, IP67/IP66, IK10
- LDC support (Lens Distortion Correction)
Specifications
Video
- Imaging Device — Size: 1/2.8"
- Imaging Device — Type: CMOS
- Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
- Max. Framerate — H.265/H.264: 60fps/50fps(60Hz/50Hz)
- Max. Framerate — MJPEG: 30fps
- Min. Illumination (Lux) — Color(1/30sec, 30IRE): 0.055
- Min. Illumination (Lux) — BW(1/30sec, 30IRE): 0.0055
- Video Out: CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B. Preview and installation ONLY. Requires WiFi dongle.
Lens
- Focal Length (mm): 2.4
- Max Aperture Ratio (F number) — Wide: 2.0
- Angular Field of View — Horizontal: 139°
- Angular Field of View — Vertical: 73°
- Angular Field of View — Diagonal: 167°
- Min. Object Distance: 0.4m(1.31ft)
- Lens Type: Fixed iris
Pan / Tilt / Rotate
- Pan / Tilt / Rotate Range — Pan: 0°~354°
- Pan / Tilt / Rotate Range — Tilt: 0°~67°
- Pan / Tilt / Rotate Range — Rotate: 0°~355°
Operational
- Day & Night: Auto(ICR)
- Backlight Compensation: BLC, HLC, WDR, SSDR
- Wide Dynamic Range (dB): 150
- Digital Noise Reduction: SSNRⅤ
- Digital Image Stabilization: Support
- Defog: Support
- Motion Detection — Quantity: 8ea
- Motion Detection — Shape: 8point Polygonal zones
- Privacy Masking — Quantity: 32ea
- Privacy Masking — Shape: Polygonal zones
- Privacy Masking — Color / Option: Gray, Green, Red, Blue, Black, White, Mosaic
- Gain Control: Low, Middle, High
- White Balance: ATW, AWC, Manual, Indoor, Outdoor
- LDC: Support
- Electronic Shutter — Mode: Minimum, Maximum, Anti flicker
- Electronic Shutter — Speed Range: 2~1/12,000sec
- Video Rotation: Flip, Mirror, Hallway view(90°/270°)
- Alarm Interface — In/Out: Input 1ea, Output 1ea
- Alarm Triggers: Analytics, Network disconnect, Alarm input
- Alarm Events When Alarm Trigger Occurred: File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio In: Selectable(mic in/line in)
- Audio Out: Line out
Analytics
- Analytics Events — Normal: Defocus detection, Motion detection, Tampering, Fog detection, Face detection, Audio detection, Sound classification, Virtual area(Lotering, Intrusion, Enter/Exit, Appear/Disappear), Virtual line(Crossing, Direction) , Digital auto tracking
- Business Intelligence — Normal: People counting, Queue management, Heatmap
Network
- Ethernet: RJ-45(10/100BASE-T)
- Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
- Audio Compression: G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
- Smart Codec: Manual, WiseStreamⅡ
- Bitrate Control: H.265/H.264: CBR or VBR, MJPEG: VBR
- Streaming — Unicast: Up to 20 users
- Streaming — Multicast: Support
- Multiple Streaming: Up to 10 profiles
- Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMPv2, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), PIM-SM
- Application Programming Interface — ONVIF: S, G, T
- Application Programming Interface — Others: SUNAPI(HTTP API), Hanwha Vision Open Platform
Security
- OS / Firmware Protect: Encrypted firmware, Secure boot, Signed firmware
- User authentication: Digest authentication
- Network authentication: IEEE 802.1X(EAP-TLS, EAP-LEAP)
- Secure Communication: HTTPS, WSS(WebSocket Secure), SRTP
- Access Control: IP-based access control
- Data Protect: Encryption credentials, Encrypt compress for live recording file export
- Audit: Access / System / Event Log management
- Secure Storage: SDcard partition encrypt(AES-256)
General
- Memory — RAM: 1GB
- Memory — Flash: 256MB
- Edge Storage — Micro SD/SDHC/SDXC: Max. 512GB x 2slot(Total 1TB)
Environmental & Electrical
- Operating Condition — Temperature: -30°C~+55°C(-22°F~+131°F)
- Operating Condition — Humidity: 0~90% RH(non-condensing)
- Operating Condition — Others: Start up should be done at above -20°C
- Storage Condition — Temperature: -50°C~+60°C(-58°F~+140°F)
- Storage Condition — Humidity: 0~90% RH(non-condensing)
- Input Voltage: PoE(IEEE802.3af, Class3), 12VDC
- Power Consumption — PoE: Max 5.5W
- Power Consumption — 12VDC: Max. 6W
Mechanical
- Color: Ivory
- Material: Aluminum
- Product Dimensions: Ø120x97.5mm(4.72x3.84")
- Product Weight: 625g(1.37lb)
Certifications & Standards
- Environment: IEC 60529 IP66, IEC 60529 IP67, IEC 62262 IK10
